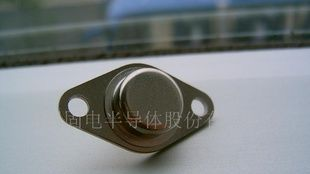

供应BUV10三极管
信息内容：供应BUV10三极管,TO-3,有意者请联系！"

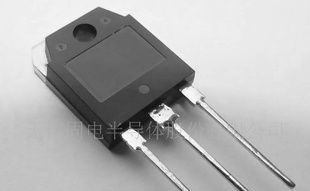

无锡固电ISC供应2SD1290三极管
信息内容：DESCRIPTION ·High Voltage·Wide Area of Safe Operation·Built-in damper diode APPLICATIONS·Designed for color TV horizontal deflectionoutputapplications. Absolute maximum ratings (Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage1500VVCESCollector-Emitter Voltage1500VVEBOEmitter-Base Voltage5VICCollector Current-Continuous3AICMCollector Current-Peak10APCCollector Power Dissipation@TC=25℃50WTjJunction Temperature130℃TstgStorageTemperature Range-55-130℃ ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYPMAXUNITV(BR)EBOEmitter-Base Breakdown VoltageIE= 500mA; IC= 05 VVCE(sat)Collector-Emitter Saturation VoltageIC= 2A; IB= 0.75A 5.0VVBE(sat)Base-Emitter Saturation VoltageIC= 2A; IB= 0.75A 1.5VhFEDC Current GainIC= 2A; VCE= 10V3 8 ICBOCollector Cutoff CurrentVCB= 750V; IE= 0VCB= 1500V; IE= 0 501.0μAmAVECFC-E Diode Forward VoltageIF= 4A 2.2VSwitching TimestsS...
