无锡固电ISC供应2SD1290三极管
| 价 格： | 5.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SD1290 | |
| 应用范围： | 功率 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | TO-3PN | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·High Voltage
·Wide Area of Safe Operation
·Built-in damper diode
APPLICATIONS
·Designed for color TV horizontal deflectionoutput
applications.
Absolute maximum ratings (Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 1500 | V |
VCES | Collector-Emitter Voltage | 1500 | V |
VEBO | Emitter-Base Voltage | 5 | V |
IC | Collector Current-Continuous | 3 | A |
ICM | Collector Current-Peak | 10 | A |
PC | Collector Power Dissipation @TC=25℃ | 50 | W |
Tj | Junction Temperature | 130 | ℃ |
Tstg | StorageTemperature Range | -55-130 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP | MAX | UNIT |
V(BR)EBO | Emitter-Base Breakdown Voltage | IE= 500mA; IC= 0 | 5 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 2A; IB= 0.75A |
|
| 5.0 | V |
VBE(sat) | Base-Emitter Saturation Voltage | IC= 2A; IB= 0.75A |
|
| 1.5 | V |
hFE | DC Current Gain | IC= 2A; VCE= 10V | 3 |
| 8 |
|
ICBO | Collector Cutoff Current | VCB= 750V; IE= 0 VCB= 1500V; IE= 0 |
|
| 50 1.0 | μA mA |
VECF | C-E Diode Forward Voltage | IF= 4A |
|
| 2.2 | V |
Switching Times | ||||||
ts | Storage Time | IC= 2A;ILeak= 0.75A; LB= 5μH |
|
| 7 | μs |
tf | Fall Time |
|
| 1 | μs | |
"
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 谈增琴
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：
- QQ ：

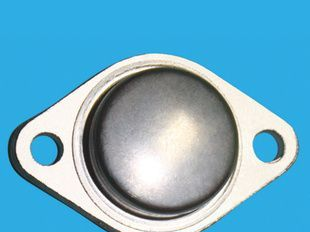

供应2SD657三极管
信息内容：供应2SD657三极管TO-3"
无锡固电ISC 供应BU932三极管
信息内容：DESCRIPTION ·High Voltage·DARLINGTON APPLICATIONS·Automotive ignition applications·Inverters circuits for motor controls Absolute maximum ratings (Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage500VVCEOCollector-Emitter Voltage450VVEBOEmitter-Base Voltage5VICCollector Current15AICMCollector Current-peak30AIBBase Current1AIBMBase Current-peak5APCCollector Power Dissipation@TC=25℃150WTjJunction Temperature200℃TstgStorageTemperature Range-40~200℃ THERMAL CHARACTERISTICSSYMBOLPARAMETERMAXUNITRth j-cThermal Resistance, Junction to Case1.0℃/W ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITVCEO(SUS)Collector-Emitter Sustaining VoltageIC= 0.1A; IB= 0;L= 10mH450 VVCE(sat)Collector-Emitter Saturation VoltageIC= 8A; IB= 150mA 1.8VVBE(sat)Base-Emitter Saturation VoltageIC= 8A; IB= 150mA 2.2VICESCollector Cutoff CurrentVCE= 450V;VBE= 0VCE= 450V;VBE= 0;Tj= 125℃ 1.05.0mAICEOCollector Cutoff C...
