| Scope | |||||

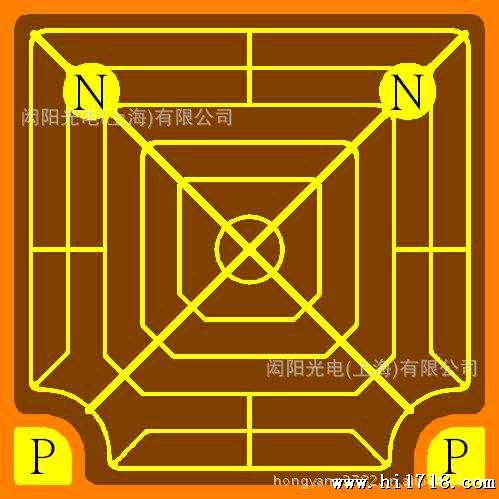

This specification applies to AlInGaP metal bonding 42 x 42mil yellow LED chip, BH-Y4242D-A1. | |||||
| Materials | |||||
P-pad：Au alloy | |||||
| Dimensions | |||||
Chip size：1060&plun;25μm x 1060&plun;25μm. | |||||
| Elero-optical charaeristics and specification: (Tc=25°C) | |||||
| Test parameter | Condition | Min | T | Max | Unit |
| Dominant wavelength(Wd) | 350mA | 570 | - | 610 | nm |
| Luminous intensity(Iv) | 350mA | 4150 | - | 10000 | mcd |
| Forward voltage(Vf4) | 10uA | 1.3 | - | 2.5 | V |
| Forward voltage(Vf1) | 350mA | 1.8 | - | 2.6 | V |
| Reverse current (Ir) | -10V | 0 | - | 2 | uA |
