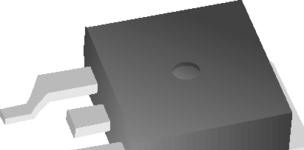

MURB1620CTR
Preferred Device
SWITCHMODE
Power Rectifier
These state漢昀琢栀攀愢爀琀 devices are designed for use in negative
switching power supplies, inverters and as free wheeling diodes. Also,
used in conjunction with common cathode dual Ultrafast Rectifiers,
makes a single phase full眢愀瘀攀 bridge.
Features
Common Anode Dual Rectifier (8.0 A per Leg or 16 A per Package)
Ultrafast 35 Nanosecond Reverse Recovery Times
Exhibits Soft Recovery Characteristics
High Temperature Glass Passivated Junction
Low Leakage Specified @ 150°C Case Temperature
Current Derating @ Both Case and Ambient Temperatures
Epoxy Meets UL 94 V〢 @ 0.125 in
Complement to MUR1620CT and MURB1620CT Common Cathode
Device
PbFree Packages are Available
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: MUR1620CTR: 1.9 Grams (Approximately)
MURB1620CTR: 1.7 Grams (Approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
