供应 场效应管 ME90P03G ME90P03
| 价 格： | 面议 | |
| 型号/规格： | ME90P03G | |
| 品牌/商标： | 松木 | |
| 封装形式： | SOT-252 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 贴片式 | |
| 包装方式： | 2500/盘 | |
| 功率特征： | 小功率 |
ME90P03G,SOT-252,SMD/MOS,P场,-30V,-60A,0.0076Ω
AP40P03GH,SOT-252,AP/富鼎,SMD/MOS,P场,-30V,-30A,0.028Ω
AM50P03-09D,SOT-252,艾柏电子,SMD/MOS,P场,-30V,-61A,
AP40P03GH,SOT-252,AP/富鼎,SMD/MOS,P场,-30V,-30A,0.028Ω
AOD403,SOT-252,AO,SMD/MOS,P场,-30V,-85,7.6mΩ
CMD40P03,SOT-252,SMD/MOS, -30V, -30A,
AP4435GH,SOT-252,SMD/MOS,P场,-30V,-40A,0.02Ω
ME90P03G,SOT-252,SMD/MOS,P场,-30V,-60A,0.0076Ω
产品型号:ME90P03G 30V P-Channel Enhancement Mode MOSFET
概述:
The ME90P03 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management and other battery powered circuits where Low-side switching , and low in-line power loss are needed in a very small outline surface mount package.
该ME90P03是P沟道逻辑增强模式功率场效应晶体管都采用高密度，DMOS沟道技术。这种高密度工艺特别是针对减少通态电阻。这些器件特别适用于低电压应用，如手机和笔记本电脑电源管理和其他电池供电电路中低侧开关和低线的功率损耗，需要在一个非常小外形表面贴装封装。
特点
* RDS（ON）≦6.2mΩ@ VGS=-20V
* RDS（ON）≦7.6mΩ@ VGS=-10V
* 超高密度电池设计极低的RDS（ON）
* 卓越的导通电阻和DC电流能力
应用
* 便携式设备
* 电池供电系统
* DC / DC转换器
* 负荷开关
封装:SOT-252
品牌：ME/松木
源漏极间雪崩电压V(br)dss(V):-30
夹断电压VGS(V):±20
漏极电流Id(A):-62
源漏极导通电阻rDS(on)(Ω):0.0076 @VGS = -10 V
开启电压VGS(TH)(V):-3
功率PD(W):38
输入电容Ciss(PF):4510 typ.
通道极性:P沟道
低频跨导gFS(s)：
单脉冲雪崩能量EAS(mJ):
导通延迟时间Td(on)(ns):60 typ.
上升时间Tr(ns):23 typ.
关断延迟时间Td(off)(ns):163 typ.
下降时间Tf(ns):42 typ.
温度(℃): -55 ~150
描述:ME90P03G,-30V,-60A,0.0076Ω P-沟道增强型场效应晶体管
登陆我站:http://www.chinajincheng.com
企业Q Q:4006262666
(产品图片,产品参数,产品PDF,产品Datasheet等产品相关信息在线了解\查询\.)
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 方小姐/陈小姐/刘小姐/钟小姐
- 电话：0755-82814431/82814432
- 传真：0755-83957820
- 手机：15914096884
- QQ ：
供应 场效应管 AP9972GI 9972GI
信息内容：AP9972GI,TO-220F,DIP/MOS,N场,60V ,35A,0.018Ω CMF30N06L,TO-220F,DIP/MOS,60V ,30A,0.035Ω TK75A06K3,TO-220F,DIP/MOS,N场,60V ,75A,0.0055Ω 2SD2396,TO-220F,DIP/MOS,NPN,60V,3A, TK30A06J3A,TO-220F,DIP/MOS,N场,60V ,30A,0.026Ω TK75A06K3,TO-220F,DIP/MOS,N场,60V ,75A,0.0055Ω AP9972GI,TO-220F,DIP/MOS,N场,60V ,35A,0.018Ω TK75A06K3,TO-220F,DIP/MOS,N场,60V ,75A,0.0055Ω 产品型号:AP9972GI FEATURES: * 栅极电荷 * 单身驱动要求 * 低导通电阻 封装:TO-220F 品牌：AP/富鼎 源漏极间雪崩电压V(br)dss(V):60 夹断电压VGS(V):±25 漏极电流Id(A):35 源漏极导通电阻rDS(on)(Ω):0.018 @VGS = 10 V 开启电压VGS(TH)(V):3 功率PD(W):31.3 输入电容Ciss(PF):3160 typ. 通道极性:N沟道 低频跨导gFS(s)：40 单脉冲雪崩能量EAS(mJ): 导通延迟时间Td(on)(ns):12 typ. 上升时间Tr(ns):37 typ. 关断延迟时间Td(off)(ns):47 typ. 下降时间Tf(ns):59 typ. 温度(℃): -55 ~150 描述:AP9972GI,60V ,35A N-沟道增强型场效应晶体管...

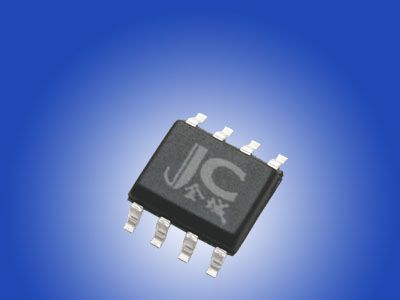

供应 场效应管 SI4894BDY 4894
