三极管 S8050
| 价 格： | 面议 | |
| 型号/规格： | S8050 | |
| 品牌/商标： | SZGKT | |
| 封装形式： | TO-220 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 直插式 | |
| 包装方式： | 单件包装 |
FEATURES:
Power dissipation PCM : 0.625
W（Tamb=25℃）
Collector
current ICM : 0.5 A
Collector-base voltage V(BR)CBO : 40 V
ELECTRICAL CHARACTERISTICS（Tamb=25℃ unless otherwise specified）
|
Symbol |
Test conditions |
MIN |
TYP |
MAX |
Unit |
|
V(BR)CBO |
Ic=100uA, IE=0 |
40 |
|
|
V |
|
V(BR)CEO |
IC= 0.1mA, IB=0 |
25 |
|
|
V |
|
V(BR)EBO |
IE= 100uA, IC=0 |
5 |
|
|
V |
|
ICBO |
VCB=40V, IE=0 |
|
|
0.1 |
uA |
|
ICEO |
ICE=20V, IE=0 |
|
|
0.1 |
uA |
|
IEBO |
VEB=5V, IC=0 |
|
|
0.1 |
uA |
|
hFE(1) |
VCE= 1V, IC= 50mA |
85 |
|
300 |
|
|
hFE(2) |
VCE= 1V, IC=500mA |
50 |
|
|
|
|
VCE(sat) |
IC=500mA, IB=50mA |
|
|
0.6 |
V |
|
VBE(sat) |
IC=500mA, IB=50mA |
|
|
1.2 |
V |
|
fT |
VCE=6V , IC=20mA f =30MHz |
150 |
|
|
MHz |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 翁经理/许小姐/谢小姐
- 电话：0755-27578409/27578368
- 传真：0755-27578290
- 手机：15999672043/13823390688/15019404824
- QQ ：

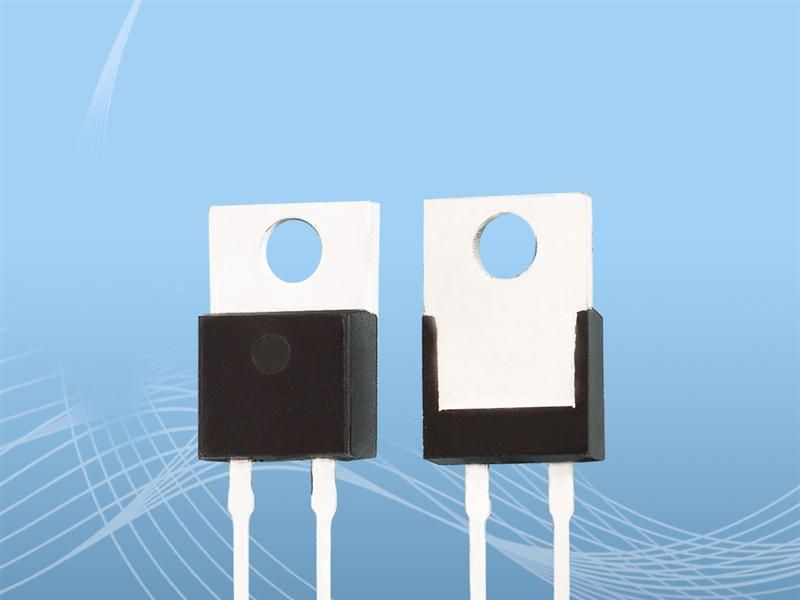

二极管 MBR2060
