二极管 MBR2060
| 价 格： | 面议 | |
| 型号/规格： | MBR2060 | |
| 品牌/商标： | SZGKT | |

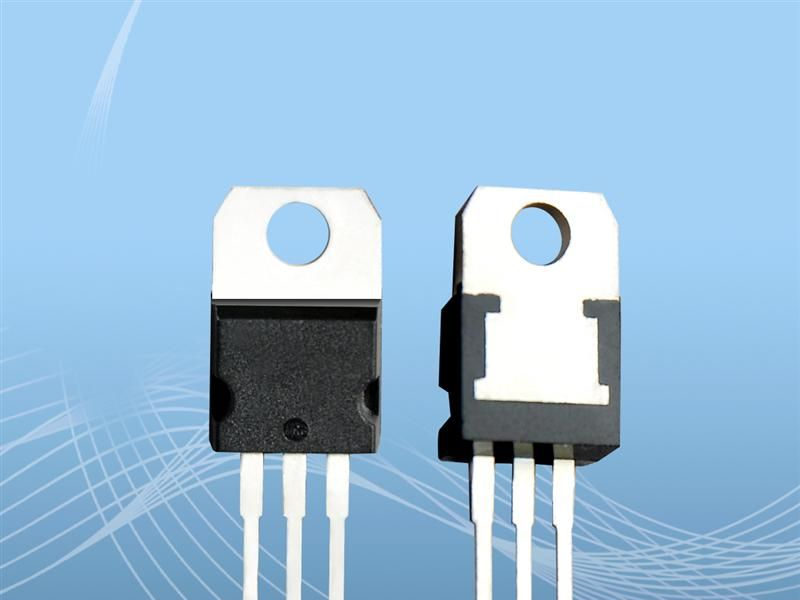

| 封装形式： | TO-220 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 直插式 | |
| 包装方式： | 单件包装 |
Specification
Features:
* High Switching Speed
Device
* High Current, Low
Forward Voltage Drop
* Low Power Loss and High
Efficiency
* Guard Ring for
Over-voltage Protection
* High Surge
Capability
* RoHS
Compliant
* Matte Tin(Sn) Lead
Finish
*
Terminal Leads Surface is Corrosion Resistant and can withstand to 260°C Wave
Soldering or
per MIL-STD-750,
Method 2026.
MAXIMUM RATINGS:
|
Symbol |
Parameter |
Value |
Unit |
|
VRRM |
Maximum Repetitive Reverse Voltage |
60 |
V |
|
VRWM |
Working Peak Reverse Voltage |
||
|
VR |
Maximum DC Reverse Voltage |
||
|
IF(AV) |
Average Rectified Forward Current |
20 |
A |
|
Tstg |
Storage TemperatureRange |
-65 to +175 |
℃ |
|
Tj |
Operating Junction Temperature |
+175 |
℃ |
ELECTRICAL CHARACTERISTICS:
|
Symbol |
Parameter |
Test Conditions |
Limits |
Units |
|
|
Min |
Max |
||||
|
IR |
Reverse Current |
@ rated VR |
- |
1mA |
uA |
|
VF |
Forward Voltage |
20A |
- |
0.750 |
V |
1. Tested under pulse condition of 300μS.
