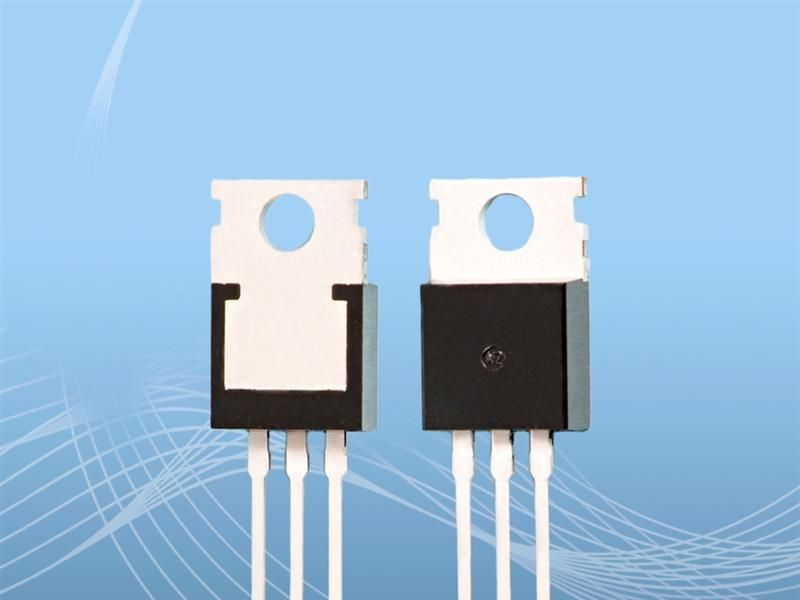

双向可控硅MAC228
| 价 格： | 面议 | |
| 型号/规格： | MAC228 | |
| 品牌/商标： | SZGKT |
DESCRIPTION:
Designed primarily for industrial and consumer applications for full−wave control of AC loads
such as appliance controls, heater controls, motor controls, and other power switching applications.
FEATURES:
* Sensitive Gate Triggering in 3 Modes for AC Triggering on Sinking Current Sources
* Four Mode Triggering for Drive Circuits that Source Current
* All Diffused and Glass−Passivated Junctions for Parameter Uniformity and Stability
* Small, Rugged, Thermowatt Construction for Low Thermal Resistance and High Heat Dissipation
* Center Gate Geometry for Uniform Current Spreading
* These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS(TJ = 25°C unless otherwise noted)
* VDRM ≤ 600V (MAC228A8)
* VDRM ≤ 800V (MAC228A10)
* ITSM ≤ 80A
* IT(RMS) ≤ 8A
* IGT ≤ 5mA (MAC228A8,MAC228A10)
* VT ： 1.8V
* VGT : 2.0V
