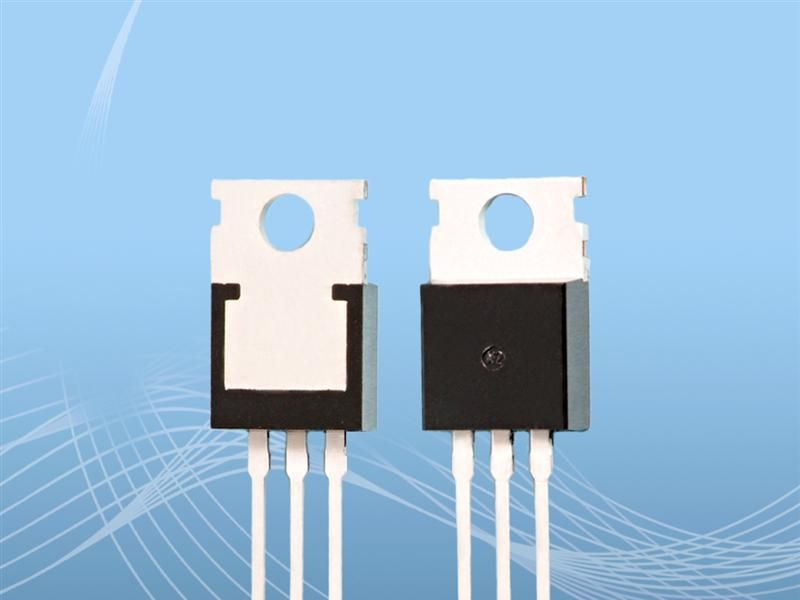

双向可控硅 MAC212
| 价 格： | 面议 | |
| 型号/规格： | MAC212 | |
| 品牌/商标： | SZGKT |
DESCRIPTION:
Designed primarily for full-wave ac control applications, such as light dimmers, motor controls, heating
controls and power supplies; or wherever full-wave silicon gate controlled solid-state devices are needed.
Triac type thyristors switch from a blocking to a conducting state for either polarity of applied anode voltage
with positive or negative gate triggering.
FEATURES:
* Blocking Voltage to 800 Volts
* All Diffused and Glass Passivated Junctions for Greater Parameter Uniformity and Stability
* Small, Rugged, Thermowatt Construction for Low Thermal Resistance, High Heat Dissipation and Durability
* Gate Triggering Guaranteed in Four Modes
* Pb−Free Packages are Available
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
* VDRM ≤ 600V (MAC212A8)
* VDRM ≤ 800V (MAC212A10)
* ITSM ≤ 100A
* IT(RMS) ≤ 12A
* IGT ≤ 50mA (MAC212A8,MAC212A10)
* VT ： 1.3-1.75V
* VGT : 0.9-2.0V
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 翁经理/许小姐/谢小姐
- 电话：0755-27578409/27578368
- 传真：0755-27578290
- 手机：15999672043/13823390688/15019404824
- QQ ：
双向可控硅MAC228
信息内容：DESCRIPTION: Designed primarily for industrial and consumer applications for full−wave control of AC loads such as appliance controls, heater controls, motor controls, and other power switching applications. FEATURES: * Sensitive Gate Triggering in 3 Modes for AC Triggering on Sinking Current Sources * Four Mode Triggering for Drive Circuits that Source Current * All Diffused and Glass−Passivated Junctions for Parameter Uniformity and Stability * Small, Rugged, Thermowatt Construction for Low Thermal Resistance and High Heat Dissipation * Center Gate Geometry for Uniform Current Spreading * These Devices are Pb−Free and are RoHS Compliant MAXIMUM RATINGS(TJ = 25°C unless otherwise noted) * VDRM ≤ 600V (MAC228A8) * VDRM ≤ 800V (MAC228A10) * ITSM ≤ 80A * IT(RMS) ≤ 8A * IGT ≤ 5mA (MAC22...

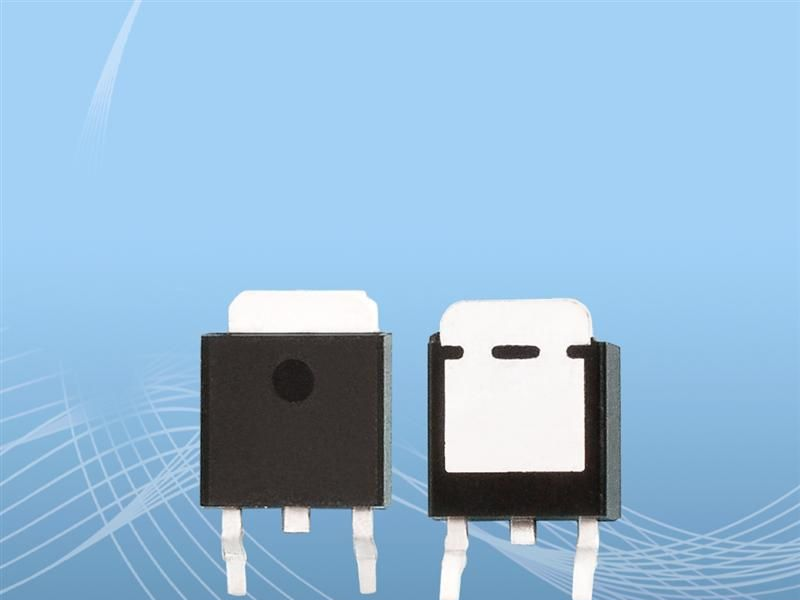

双向可控硅 MAC4D
信息内容：DESCRIPTION: Designed for high volume, low cost, industrial and consumer applications such as motor control; process control; temperature, light and speed control. FEATURES: * Small Size Surface Mount DPAK Package * Passivated Die for Reliability and Uniformity * Blocking Voltage to 800 V * On−State Current Rating of 4.0 A RMS at 108°C * High Immunity to dv/dt − 500 V/s at 125°C * High Immunity to di/dt − 6.0 A/ms at 125°C * Epoxy Meets UL 94 V−0 @ 0.125 in * ESD Ratings: Human Body Model, 3B 8000 V Machine Model, C 400 V * Pb−Free Packages are Available MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) * VDRM ≤ 600V (MAC4DCM、MAC4DSM、MAC4DHM、MAC4DLM) * VDRM ≤ 800V (MAC4DCN、MAC4DSN) * ITSM ≤ 40A * IT(RMS) ≤ 4A * IGT ≤ 3mA (MAC4DLM) ...
