双向可控硅 MAC12
| 价 格： | 面议 | |
| 型号/规格： | MAC12 | |
| 品牌/商标： | SZGKT |
DESCRIPTION:
Designed primarily for full-wave ac control applications, such as motor controls, heating controls or dimmers;
or wherever full−wave,silicon gate−controlled devices are needed.
FEATURES:
* Blocking Voltage to 800 Volts
* On−State Current Rating of 12 Amperes RMS at 70°C
* Uniform Gate Trigger Currents in Three Quadrants, Q1, Q2, and Q3
* High Immunity to dv/dt − 250 V/s Minimum at 125°C
* High Commutating di/dt − 6.5 A/ms Minimum at 125°C

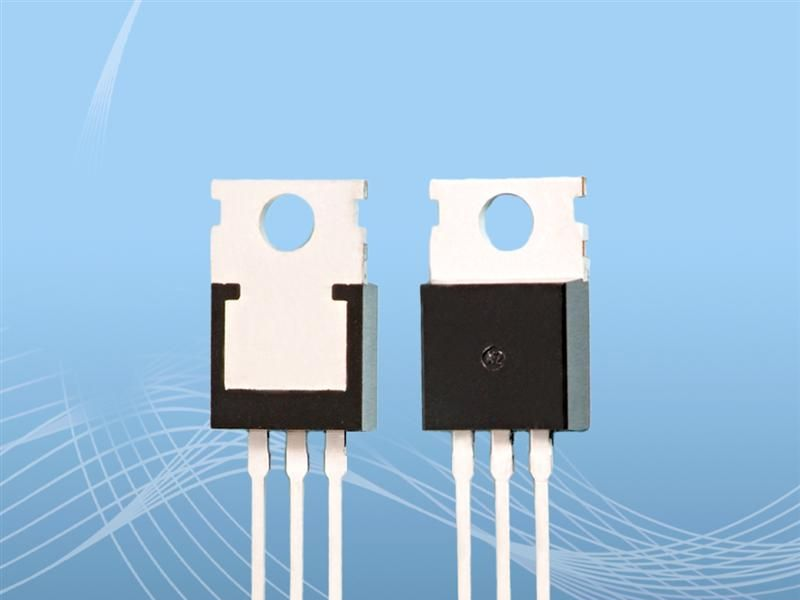

* Industry Standard TO−220 AB Package
* High Surge Current Capability − 100 Amperes
* Pb−Free Packages are Available
MAXIMUM RATINGS：
* VDRM ≤ 600V (MAC12M 、MAC12HCMG、MAC12SM)
* VDRM ≤ 800V (MAC12N 、MAC12HCNG、MAC12SN)
* IT(RMS) ≤ 12A
* ITSM ≤ 100A
* IGT ≤ 5mA (MAC12SM、MAC12SN)
* IGT ≤ 35mA (MAC12M、MAC12N)
* IGT ≤ 50mA (MAC12HCMG、MAC12HCNG)
* VT : 1.85V
* VGT : 0.5-1.5V
