双向可控硅 MAC16
| 价 格： | 面议 | |
| 型号/规格： | MAC16 | |
| 品牌/商标： | SZGKT |
DESCRIPTION:
Designed primarily for full wave ac control applications, such asmotor controls, heating controls or
dimmers; or wherever full−wave,silicon gate−controlled devices are needed.
FEATURES:
* High Commutating di/dt and High Immunity to dV/dt @ 125°C
* Minimizes Snubber Networks for Protection
* Blocking Voltage to 800 Volts
* On-State Current Rating of 16 Amperes RMS
* High Surge Current Capability − 150 Amperes

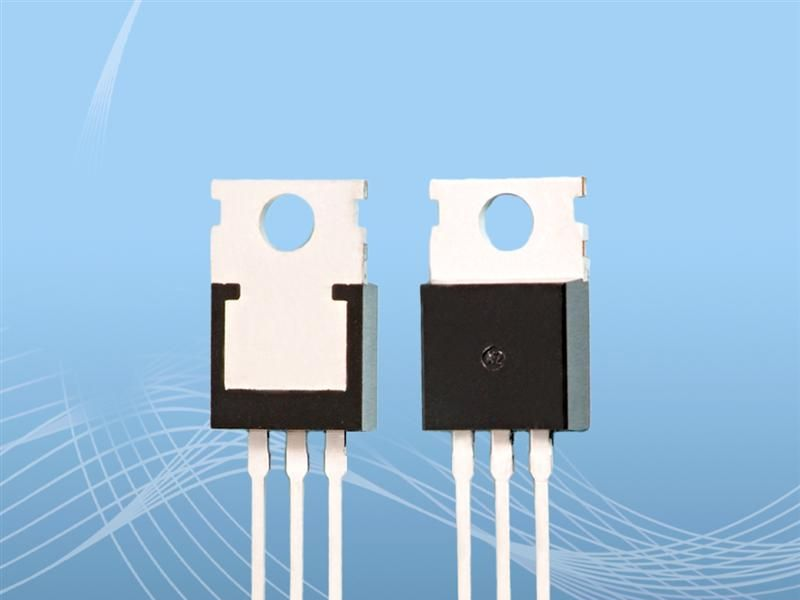

* Industry Standard TO-220AB Package for Ease of Design
* Glass Passivated Junctions for Reliability and Uniformity
* Operational in Three Quadrants, Q1, Q2, and Q3
* Pb−Free Packages are Available
MAXIMUM RATINGS :(TJ = 25°C unless otherwise noted)
* VDRM ≤ 600V (MAC16HCM,MAC16M,MAC16CM)
* VDRM ≤ 800V (MAC16HCN,MAC16N,MAC16CN)
* ITSM ≤ 150A
* IT(RMS) ≤ 16A
* IGT ≤ 35mA (MAC16CM , MAC16CN)
* IGT ≤ 50mA (MAC16M, MAC16N,MAC16HCM, MAC16HCN)
* VT ： 1.2-1.6V
* VGT : 0.5-1.5V
