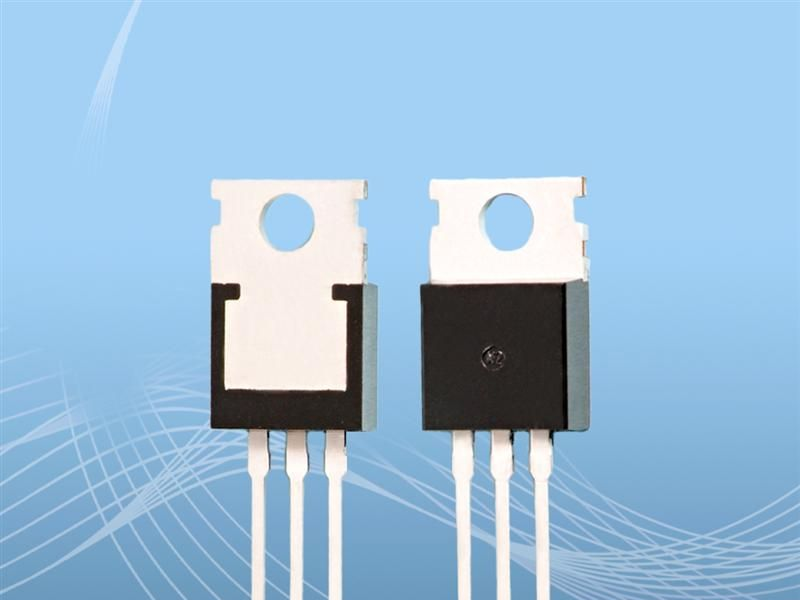

双向可控硅 MAC15
| 价 格： | 面议 | |
| 型号/规格： | MAC15 | |
| 品牌/商标： | SZGKT |
DESCRIPTION:
Designed primarily for full-wave ac control applications, such as solid−state relays, motor controls,
heating controls and power supplies; or wherever full−wave silicon gate controlled solid−state
devices are needed. Triac type thyristors switch from a blocking to a conducting state for either polarity
of applied main terminal voltage with positive or negative gate triggering.
FEATURES:
* Blocking Voltage to 800 V
* All Diffused and Glass Passivated Junctions for Greater Parameter Uniformity and Stability
* Small, Rugged, Thermowatt Construction for Low Thermal Resistance, High Heat Dissipation and Durability
* Gate Triggering Guaranteed in Three Modes (MAC15 Series) or Four Modes (MAC15A Series)
* These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
* VDRM ≤ 600V (MAC15−8G, MAC15A8G,MAC15M)
* VDRM ≤ 800V (MAC15−10G, MAC15A10G,MAC15N)
* ITSM ≤ 150A
* IT(RMS) ≤ 15A
* IGT ≤ 35mA (MAC15M , MAC15N)
* IGT ≤ 50mA (MAC15−8G, MAC15A8G,MAC15−10G, MAC15A10G)
* VT ： 1.3-1.6V
* VGT : 0.9-2V
