双向可控硅 BTA312
| 价 格： | 面议 | |
| 型号/规格： | BTA312 | |
| 品牌/商标： | SZGKT |
General description

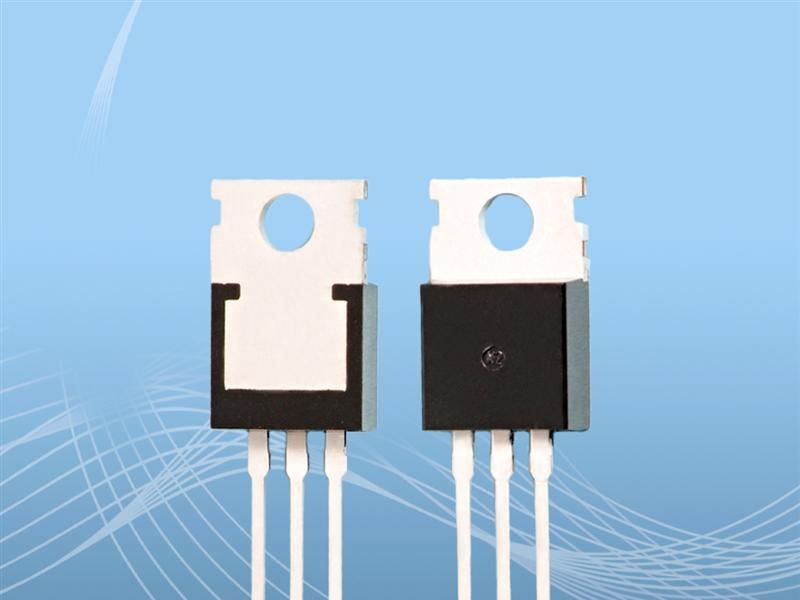

Planar passivated high commutation three quadrant triac in a SOT78 (TO-220AB) plastic
package intended for use in circuits where high static and dynamic dV/dt and high dI/dt
can occur. This "series B" triac will commutate the full RMS current at the maximum rated
junction temperature without the aid of a snubber.
Features and benefits
* 3Q technology for improved noise immunity
* High commutation capability with maximum false trigger immunity
* High voltage capability
* Less sensitive gate for highest noise immunity
* Planar passivated for voltage ruggedness and reliability
* Triggering in three quadrants only
* Very high immunity to false turn-on by dV/dt
Applications
* Electronic thermostats (heating and cooling)
* High power motor controls e.g. washing machines and vacuum cleaners
* Rectifier-fed DC inductive loads e.g. DC motors and solenoids
Quick reference data
* VDRM ≤ 800V
* ITSM ≤ 100A
* IT(RMS) ≤ 12A
* IGT ≤ 50mA (BTA312-800B)(BTA312X-800B)(BTA312B-800B)
* IGT ≤ 35mA (BTA312-800C)(BTA312X-800C)(BTA312B-800C)
* IGT ≤ 10mA (BTA312-800E)(BTA312X-800E)(BTA312B-800E)
* IGT ≤ 5mA (BTA312-800D)(BTA312X-800D)(BTA312B-800D)
* VT : 1.3-1.6
* VGT : 0.8-1.5
