双向可控硅 BTA412
| 价 格： | 面议 | |
| 型号/规格： | BTA412 | |
| 品牌/商标： | SZGKT |
General description

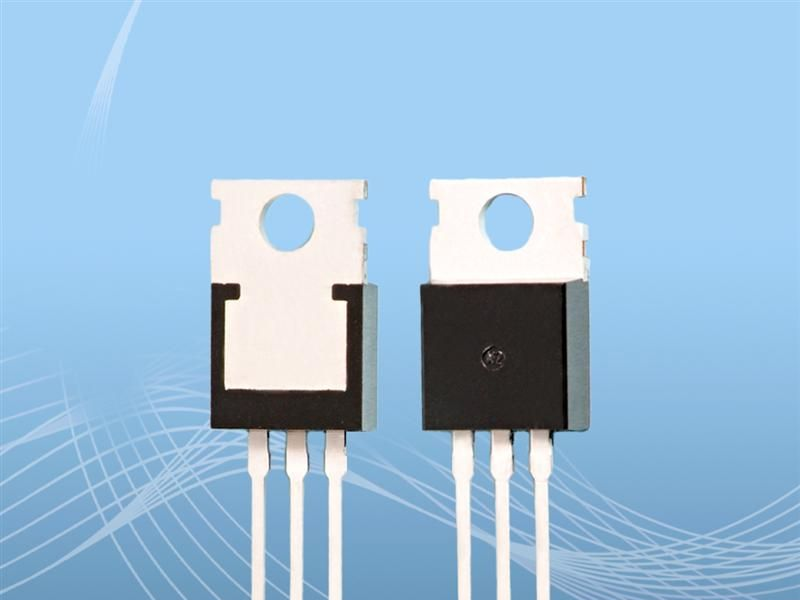

Passivated, new generation, high commutation triacs in an internally insulated TO-220 plastic package.
Features
* Very high commutation performance n High immunity to dV/dt
* Isolated mounting base n 2500 V RMS isolation voltage
* High operating junction temperature
Applications
* Heating and cooking appliances n Non-linear rectifier-fed motor loads
* High power motor control e.g. vacuum cleaners
* Electronic thermostats for heating and cooling loads
* Solid state relays
Quick reference data
* VDRM ≤ 600 V (BTA412Y-600B/C) * IGT ≤ 50 mA (BTA412Y series B)
* VDRM ≤ 800 V (BTA412Y-800B/C) * IGT ≤ 35 mA (BTA412Y series C)
* IT(RMS) ≤ 12 A * ITSM ≤ 140 A (t = 20 ms)
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 翁经理/许小姐/谢小姐
- 电话：0755-27578409/27578368
- 传真：0755-27578290
- 手机：15999672043/13823390688/15019404824
- QQ ：
双向可控硅 BTA416
信息内容：General description Planar passivated high commutation three quadrant triac in a SOT78D (TO-220AB) plastic package and intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur. This "series C" triac will commutate the full RMS current at the maximum rated junction temperature without the aid of a snubber. This device has high junction temperature operating capability and an internally isolated mounting base. Features and benefits * 2500 V RMS isolation voltage capability * 3Q technology for improved noise immunity * High commutation capability with maximum false trigger immunity * High immunity to false turn-on by dV/dt * High junction temperature operating capability * High surge capability * High voltage capability * Internally insulated package * Internally isolated mounting base * Planar passivated for voltage ruggedness and reliabi...
双向可控硅BTA420

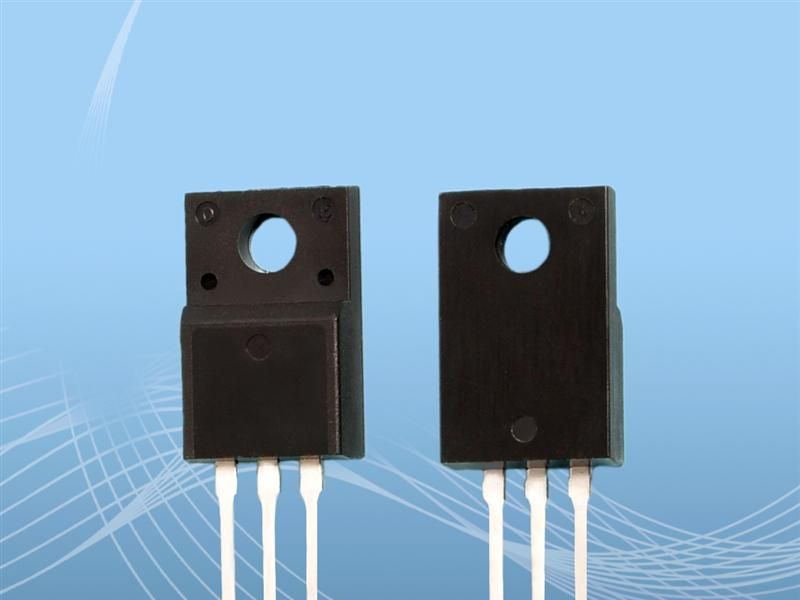

信息内容：General description Planar passivated high commutation three quadrant triac in a SOT78 (TO-220AB) plastic package and a SOT186A (TO-220F) "full pack" plastic package intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur. This "series BT" triac will commutate the full RMS current at the maximum rated junction temperature (Tj(max) = 150 °C) without the aid of a snubber. It is used in applications where "high junction operating temperature capability" is required. Features and benefits * 3Q technology for improved noise immunity * High commutation capability with maximum false trigger immunity * High immunity to false turn-on by dV/dt * High junction operating temperature capability * High voltage capability * Least sensitive gate for highest noise immunity * Planar passivated for voltage ruggedness and reli...
