双向可控硅 BTA416
| 价 格： | 面议 | |
| 型号/规格： | BTA416 | |
| 品牌/商标： | SZGKT |
General description

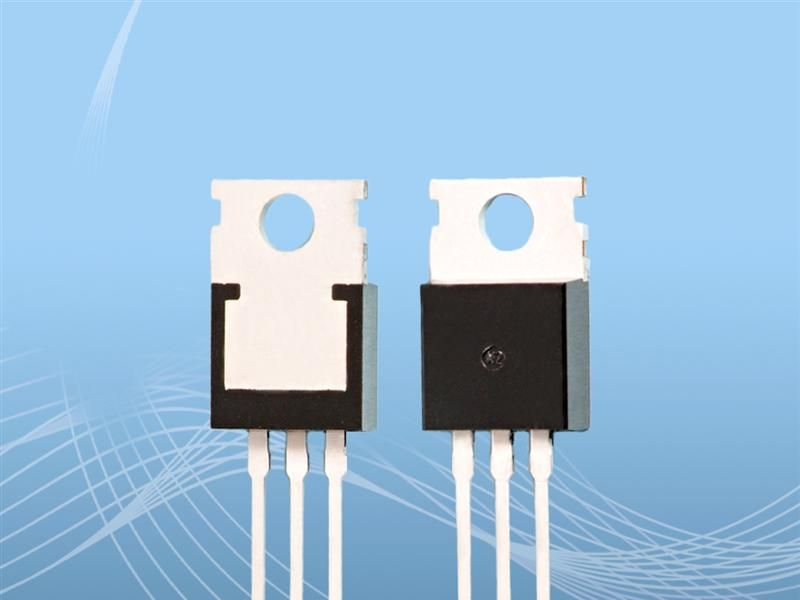

Planar passivated high commutation three quadrant triac in a SOT78D (TO-220AB)
plastic package and intended for use in circuits where high static and dynamic dV/dt
and high dI/dt can occur. This "series C" triac will commutate the full RMS current at
the maximum rated junction temperature without the aid of a snubber. This device has
high junction temperature operating capability and an internally isolated mounting base.
Features and benefits
* 2500 V RMS isolation voltage capability
* 3Q technology for improved noise immunity
* High commutation capability with maximum false trigger immunity
* High immunity to false turn-on by dV/dt
* High junction temperature operating capability
* High surge capability
* High voltage capability
* Internally insulated package
* Internally isolated mounting base
* Planar passivated for voltage ruggedness and reliability
* Triggering in three quadrants only
Applications
* Electronic thermostats (heating and cooling)
* High power motor controls e.g. vacuum cleaners
* Rectifier-fed DC inductive loads e.g. DC motors and solenoids
Quick reference data
* VDRM ≤ 800V
* ITSM ≤ 160A
* IT(RMS) ≤ 16A
* IGT ≤ 35mA(BTA416Y-800C)
* IGT ≤ 50mA(BTA416Y-800B)
* VT : 1.2-1.5V
* VGT : 0.7-1.5V
