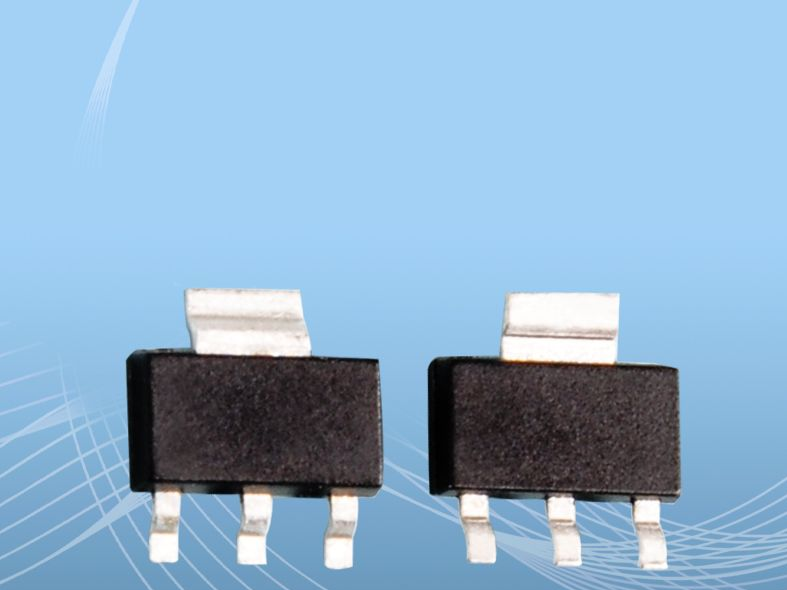

双向可控硅 T410 800T KOR 1194
| 价 格： | 面议 | |
| 型号/规格： | T410 800T KOR 1194 | |
| 品牌/商标： | SZGKT |
MAIN FEATURES:
|
Symbol |
Value |
Unit |
|
IT(RMS) |
4 |
A |
|
VDRM/VRRM |
600 to 800 |
V |
|
IG(Q1) |
5 to 35 |
mA |
DESCRIPTION:
Based on ST’s Snubberless / Logic level technology providing high commutation performances,
theT4 series is suitable for use on AC inductive loads.They are recommended for applications
using universal motors, electrovalves.... such as kitchen aid equipments, power tools, dishwas-
hers,...Available in a fully insulated package, the T4...-...W version complies with UL standards
(ref.E81734).
ABSOLUTE MAXIMUM RATINGS:
|
Symbol |
Parameter |
Value |
Unit |
||
|
IT(RMS) |
RMS on-state current (full sine wive) |
IPAK/DPAK/ TO-220AB |
Tc=110℃ |
4 |
A |
|
ISOWATT 220AB |
Tc=105℃ |
4 |
|||
|
ITSM |
Non repetitive surge peak on-state current(full cycle, Tj=25℃ ) |
F=50Hz |
t=20ms |
30 |
A |
|
F=60Hz |
t=16.7ms |
31 |
|||
|
Tstg |
Storage junction temperature rage Operating junction temperature rage |
-40 to +150℃ |
|||
|
Tj |
-40 to +125℃ |
||||
ELECTRICAL CHARACTERISTICS :(Tj = 25°C, unless otherwise specified)
|
Symbol |
Test conditions |
Quadrant |
|
T4 |
Unit |
||
|
T405 |
T410 |
T435 |
|||||
|
IGT |
VD=12V RL=30Ω |
Ⅰ-Ⅱ-Ⅲ |
MAX |
5 |
10 |
35 |
mA |
|
VGT |
Ⅰ-Ⅱ-Ⅲ |
MAX |
1.3 |
V |
|||
|
dV/dt |
VD=67%VDRM gate open |
Tj=125℃ |
MIN |
20 |
40 |
400 |
V/us |
STATIC CHARACTERISTICS:
|
Symbol |
Test conditions |
|
|
Value |
Unit |
|
VTM |
ITM=5.5A, tp=380us |
Tj=25℃ |
MAX |
1.6 |
V |
|
IDRM |
VDRM=VRRM |
Tj=25℃ |
MAX |
5 |
uA |
|
IRRM |
Tj=125℃ |
1 |
mA |
ORDERING INFORMATION:
