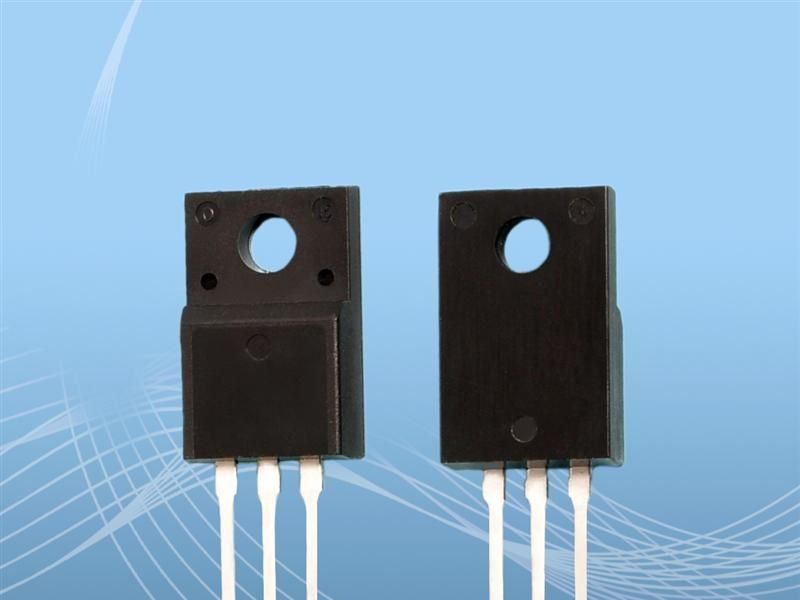

双向可控硅 BTA316X series
| 价 格： | 面议 | |
| 型号/规格： | BTA316X series | |
| 品牌/商标： | SZGKT |
GENERAL DESCRIPTION:
Passivated, new generation, high commutation triacs in a TO-220F isolated full pack plastic package.
FEATURES:
* Very high commutation performance maximized at each gate sensitivity
* High immunity to dV/dt
* High isolation voltage
* Wide range of gate sensitivities
APPLICATION:
* High power motor control - e.g. washing machines and vacuum cleaners
* Refrigeration and air conditioning compressors
* Non-linear rectifier-fed motor loads
* Electronic thermostats
LIMITING VALUES:
|
Symbol |
Parameter |
Conditions |
Min |
Max |
Unit |
|
VDRM |
repetitive peak off- state voltage |
BTA316X-600 |
- |
600 |
V |
|
BTA316X-800 |
- |
800 |
V |
||
|
IT(RMS) |
RMS on-state current |
full sine wave; Th≤45 °C |
- |
16 |
A |
|
ITSM |
non-repetitive peak on-state current |
full sine wave; Tj = 25 °C prior to surge |
|
||
|
t = 20 ms |
- |
140 |
A |
||
|
t = 16.7 ms |
- |
150 |
A |
||
STATIC CHARACTERISTICS:
|
Symbol |
Parameter |
Conditions |
Min |
Typ |
Max |
Unit |
|
|
IGT |
gate trigger current |
VD = 12 V; IT = 0.1 A |
BTA316X-600B |
2 |
- |
50 |
mA |
|
BTA316X-600C |
2 |
- |
35 |
||||
|
BTA316X-600E |
- |
- |
10 |
||||
|
VT |
on-state voltage |
IT = 18 A |
- |
1.3 |
1.5 |
V |
|
|
VGT |
gate trigger voltage |
VD = 12 V; IT = 0.1 A |
- |
0.8 |
1.5 |
V |
|
|
VD = 400 V; IT = 0.1 A; Tj = 125 °C |
0.25 |
0.4 |
- |
||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 翁经理/许小姐/谢小姐
- 电话：0755-27578409/27578368
- 传真：0755-27578290
- 手机：15999672043/13823390688/15019404824
- QQ ：
双向可控硅BT1308series
信息内容：General description Passivated sensitive gate triacs in a SOT54 plastic package Features * Sensitive gate * Gate triggering in four quadrants * Direct interfacing to logic level ICs * Direct interfacing to low-power gate drive circuits Applications * General purpose switching and phase control * Low-power AC fan speed control Limiting values Symbol Parameter Conditions Min Max Unit VDRM repetitive peak off-state voltage BT1308-400D - 400 V ...
