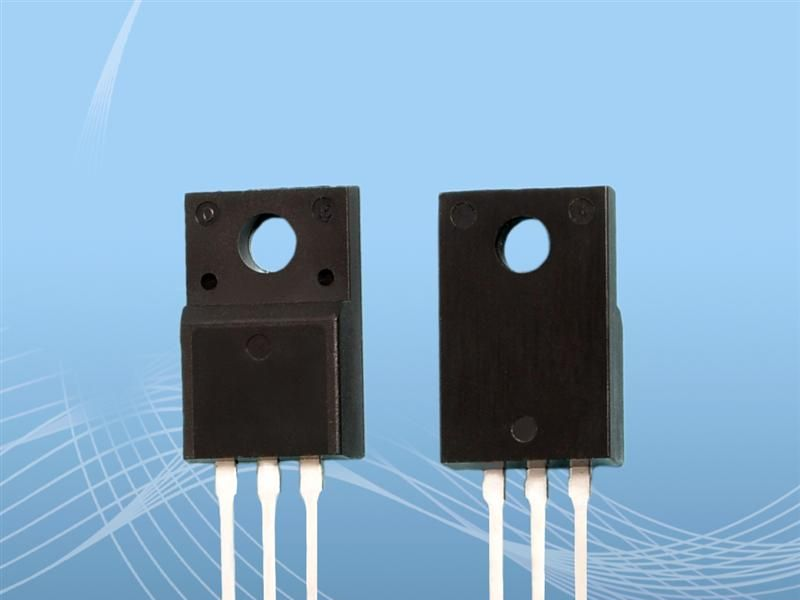

双向可控硅BT1308series
| 价 格： | 面议 | |
| 型号/规格： | BT1308series | |
| 品牌/商标： | SZGKT |
General description
Features
* Sensitive gate
* Gate triggering in four quadrants
* Direct interfacing to low-power gate drive circuits
Applications
* General purpose switching and phase control
Limiting values
Symbol
Parameter
Conditions
Min
Max
Unit
VDRM
repetitive peak off-state voltage
BT1308-400D
-
400
V
BT1308-600D
-
600
V
IT(RMS)
RMS on-state current
full sine wave; Tlead≤55 °C
ITSM
non-repetitive peak on-state current
full sine wave; Tj = 25 °C prior to surge
t = 20 ms
-
9
A
t = 16.7 ms
-
10
A
Static Characteristics
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
IGT
gate trigger current
VD = 12 V; IT = 0.1 A
T2+ G+
-
1
5
mA
T2+ G-
-
2
5
mA
T2- G-
-
2
5
mA
T2- G+
-
4
7
mA
VT
on-state voltage
IT = 0.85 A
-
1.35
1.6
V
VGT
gate trigger voltage
VD = 12 V; IT = 0.1 A
-
0.9
2
V
VD = VDRM; IT = 0.1 A; Tj = 110 °C
0.1
0.7
-
V
Passivated sensitive gate triacs in a SOT54 plastic package
* Direct interfacing to logic level ICs
* Low-power AC fan speed control
