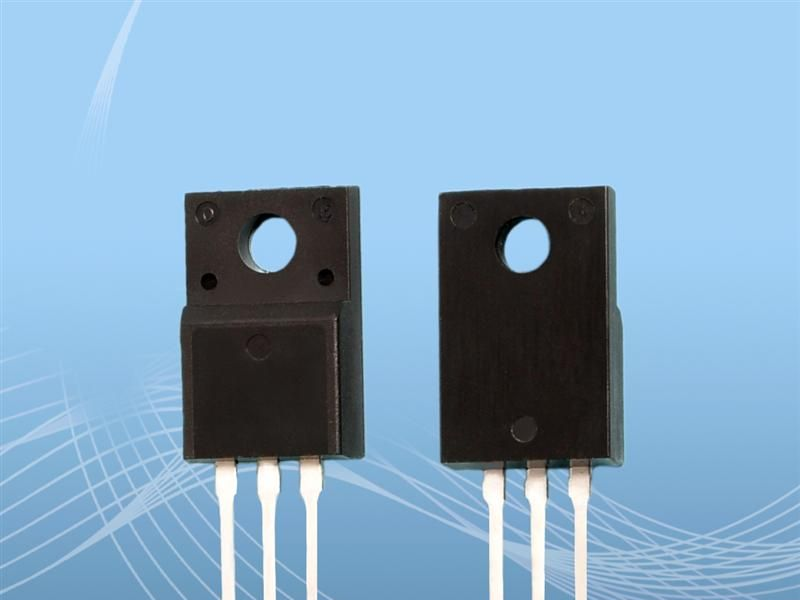

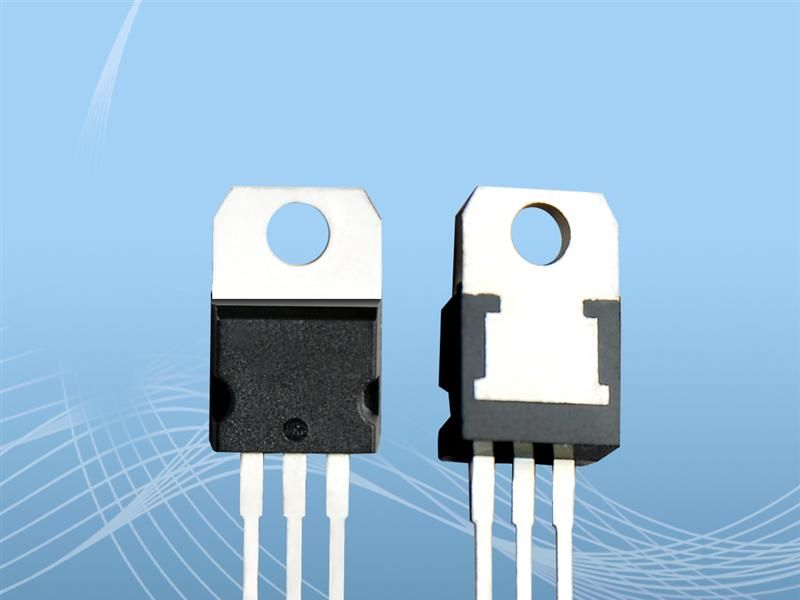

双向可控硅 Z0402/Z0405/Z0409/Z0410
| 价 格： | 面议 | |
| 型号/规格： | Z0402/Z0405/Z0409/Z0410 | |
| 品牌/商标： | SZGKT |
MAIN FEATURES:
|
Symbol |
Value |
Unit |
|
IT(RMS) |
4 |
A |
|
VDRM/VRRM |
600-800 |
V |
|
IGT(Q1) |
3-25 |
mA |
DESCRIPTION:
The Z04 series is suitable for general purpose AC switching applications. They can be found in
applications such as touch light dimmers, fan controllers, HID Iamp ignitor,...
Different gate current sensitivies are available, allowing optimized performances when
controlled directly from microcontrollers.
ELECTRICAL CHARACTERISTICS(Tj=25℃,unless otherwise specified)
|
Symbol |
Test Conditions |
Quadrant |
|
Z04×× |
Unit |
||||
|
|
02 |
05 |
09 |
10 |
|||||
|
IGT(1) |
VD=12V RL=30Ω |
ALL |
MAX |
3 |
5 |
10 |
25 |
mA |
|
|
VGT |
ALL |
MAX |
1.3 |
V |
|||||
|
IL |
IG=1.2IGT |
Ⅰ-Ⅲ-Ⅳ |
MAX |
6 |
10 |
15 |
25 |
mA |
|
|
Ⅱ |
12 |
15 |
25 |
50 |
|
||||
|
dV /dT(2) |
VD=67%VDRM gate open Tj=110℃ |
MIN |
10 |
20 |
100 |
200 |
V/us |
||
|
(dV /dT)c(2) |
(dV /dT)c=1.8A/ms Tj=110℃ |
MIN |
0.5 |
1 |
2 |
5 |
V/us |
||
STATIC CHARACTERISTICS:
|
Symbol |
Test Conditions |
Value |
Unit |
||
|
VTM(2) |
ITM=5.5A tp=380us |
Tj=25℃ |
MAX |
2.0 |
V |
|
VIO(2) |
Threshold Voltage |
Tj=125℃ |
MAX |
0.95 |
V |
|
IDRM |
VDRM=VRRM |
Tj=25℃ |
MAX |
5 |
uA |
|
IRRM |
Tj=125℃ |
MAX |
0.5 |
mA |
|
ORDERING INFORMATION:
见插入文件/upfiles/2012/1110/file/20121110100021_85997.doc
