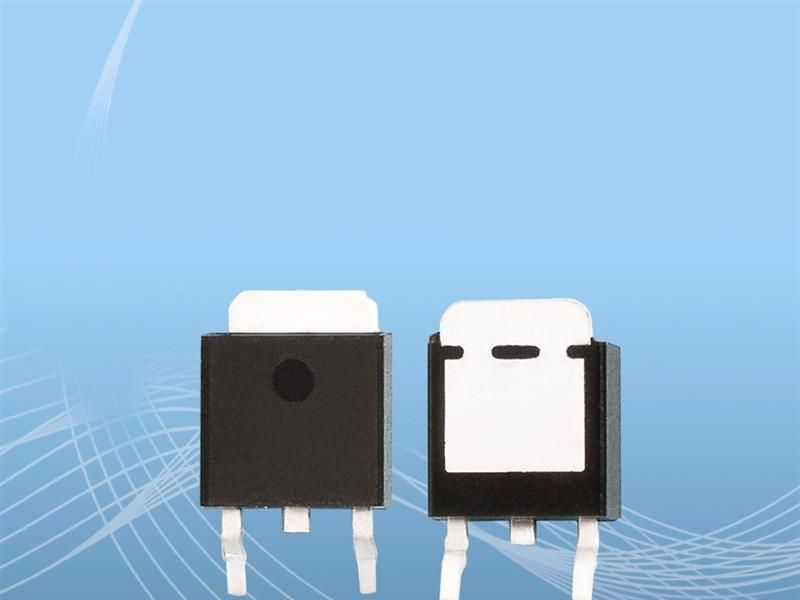

双向可控硅 BT136 series
| 价 格： | 面议 | |
| 型号/规格： | BT136 series | |
| 品牌/商标： | SZGKT |
GENERAL DESCRIPTION:
Glass passivated, sensitive gate triacs in a plastic envelope, intended for use in general
purpose bidirectional switching and phase control application, where high sensitivity is
required in all for quadrants.
QUICK REFERENCE DATA:
|
SYMBOL |
PARAMETER |
MAX |
MAX |
UNIT |
|
136- Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current |
600E |
800E |
|
|
|
VDRM IT(RMS) ITSM |
600 |
800 |
V |
|
|
4 |
4 |
A |
||
|
25 |
25 |
A |
STATIC CHARACTERISTICS：
|
SYMBOL |
PARAMETER |
CONDITION |
MIN |
TYP |
MAX |
UNIT |
|
|
IGT |
Gate trigger current |
VD=12V, IT=0.1A
|
T2+ G+ |
- |
2.5 |
10 |
mA |
|
T2+ G- |
- |
4.0 |
10 |
mA |
|||
|
T2- G- |
- |
5.0 |
10 |
mA |
|||
|
T2- G+ |
- |
11 |
25 |
mA |
|||
|
VGT |
Gate trigger current |
VD=12V, IT=0.1A |
- |
0.7 |
1.5 |
V |
|
|
|
|
VD=400V, IT=0.1A, Tj=125℃ |
0.25 |
0.4 |
- |
V |
|
|
dVD/dt |
Critical rate of rise of off-state voltage |
VD=67%VDRM (max) , Tj=125℃ exponential waveform, gate open circuit |
|
50 |
- |
V/us |
|
|
tgt |
Gate controlled turn-on time |
ITM=1.5A, VD=VDRM (max), IG=0.1A, dIG/dt=5A/us |
- |
2 |
- |
us |
|
