供应功率分配器 ADP-2-10+
| 价 格： | 面议 | |
| 型号/规格： | ADP-2-10+ | |
| 品牌/商标： | Mini-Circuits |
ADP-2-10+：Mini-Circuits 功率分配器 Surface Mount Power Splitter/Combiner 2 Way-0° 50Ω 5 to 1000 MHz
Maximum Ratings
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 100°C
Power Input (as a splitter) 0.5W max.
Internal Dissipation 0.125W max.
Permanent damage may occur if any of these limits are exceeded.
Pin Connections
SUM PORT 1
PORT 1 3
PORT 2 4
GROUND 6
NOT USED 2,5
Features
• low insertion loss, 0.4 dB typ.
• excellent amplitude unbalance, 0.01 dB typ.
• very good phase unbalance, 0.3 deg. typ.
• aqueous washable
• protected under U.S. Patent 6,133,525
Applications
• VHF/UHF receivers/transmitters
• instrumentation
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：

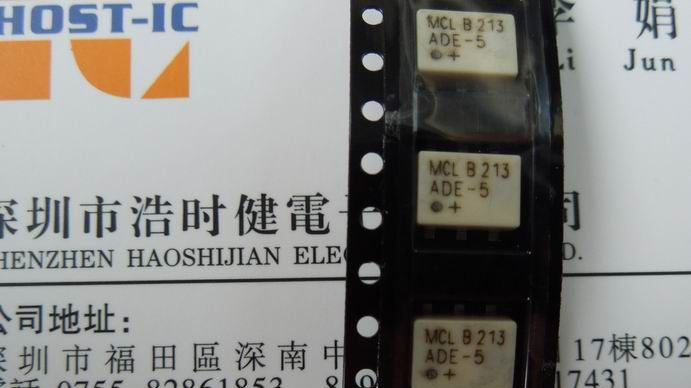

供应混频器 ADE-5+
信息内容：ADE-5+：Mini-Circuits 混频器 Surface Mount Frequency Mixer Level 7 (LO Power +7 dBm) 5 to 1500 MHz Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 50mW IF Current 40mA Permanent damage may occur if any of these limits are exceeded Pin Connections LO 6 RF 3 IF 2 GROUND 1,4,5 Features • low conversion loss, 6.6 dB typ. • excellent L-R isolation, 40 dB typ. • excellent IP3, 15 dBm • aqueous washable • protected by U.S. Patent 6,133,525 Applications • cellular • PCS

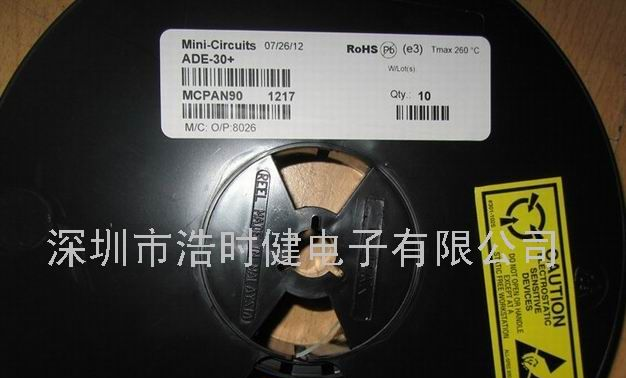

供应混频器 ADE-30+
信息内容：ADE-30+：Mini-Circuits混频器 Surface Mount Frequency Mixer Level 7 (LO Power +7 dBm) 200 to 3000 MHz Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 50mW IF Current 40mA Permanent damage may occur if any of these limits are exceeded. Pin Connections LO 6 RF 3 IF 2 GROUND 1,4,5 Features • low conversion loss, 4.5 dB typ. • excellent L-R isolation, 35 dB typ. • low profile package • aqueous washable • protected by U.S. Patent 6,133,525 Applications • cellular • PCN • instrumentation • ISM
