ADE-30+:Mini-Circuits混频器 Surface Mount Frequency Mixer Level 7 (LO Power +7 dBm) 200 to 3000 MHz
Maximum Ratings
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 50mW
IF Current 40mA
Permanent damage may occur if any of these limits are exceeded.
Pin Connections
LO 6
RF 3
IF 2
GROUND 1,4,5
Features
• low conversion loss, 4.5 dB typ.
• excellent L-R isolation, 35 dB typ.
• low profile package
• aqueous washable
• protected by U.S. Patent 6,133,525
Applications
• cellular
• PCN
• instrumentation
• ISM
PAT-30+:微型陶瓷固定衰减器 50欧 1W 30dB DC to 7000 MHz Maximum Ratings(额定值): Operating Temperature 工作温度 -55°C to 100°C Storage Temperature 存储温度 -55°C to 100°C Pin Connections: ● INPUT 1 ● OUTPUT 3 ● GROUND 2,4 Features: ● wideband, DC to 7000 MHz ● excellent VSWR, through entire band ● miniature size ● aqueous washable Applications: ● power leveling ● impedance match improvement

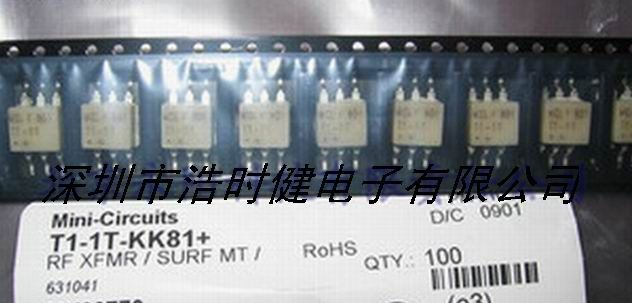

T1-1T-KK81+:Mini-Circuits RF射频变压器 Surface Mount RF Transformer 50Ω 0.08 to 200 MHz Maximum Ratings: Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.25W DC Current 30mA Permanent damage may occur if any of these limits are exceeded. Pin Connections: PRIMARY DOT 4 PRIMARY 6 SECONDARY DOT 3 SECONDARY 1 SECONDARY CT 2 NOT USED 5 Features • wideband, 0.08 to 200 MHz • excellent return loss • also available with surface mount gull wing (KK81) plug-in (X65) leads Applications • VHF • receivers/transmitters
