供应射频变压器 ADT16-1T+
| 价 格： | 面议 | |
| 型号/规格： | ADT16-1T+ | |
| 品牌/商标： | Mini-Circuits | |
| 包装方式： | 多件包装 | |
| 主要用途： | 精密电子仪器仪表 | |
| 适用电源类别： | 单相 | |
| 铁芯类型： | E型 | |
| 频率特征： | 工频 | |
| 导线类型： | 铜导线 |
ADT16-1T+：Mini-Circuits RF射频变压器 Surface Mount RF Transformer 50Ω 1.5 to 160 MHz
Maximum Ratings：
Operating Temperature -20°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 0.25W
DC Current 30mA
Permanent damage may occur if any of these limits are exceeded
Pin Connections：
PRIMARY DOT 3
PRIMARY 1
SECONDARY DOT 4
SECONDARY 6
SECONDARY CT 5
NOT USED 2
Features：
• excellent return loss, 16 dB typ. in 1 dB bandwidth
• excellent amplitude unbalance, 0.1 dB typ.
• excellent phase unbalance, 1 deg. typ.in 1 dB bandwidth
• aqueous washable
• protected under US patent 6,133,525
Applications：
• impedance matching
• baluns
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：
供应射频变压器 ADT1.5-17+
信息内容：ADT1.5-17+：Mini-Circuits RF射频变压器 Surface Mount RF Transformer 50Ω 0.5 to 1700 MHz Maximum Ratings： Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.25W DC Current 30mA Permanent damage may occur if any of these limits are exceeded Pin Connections： PRIMARY DOT 1 PRIMARY 3 SECONDARY DOT 6 SECONDARY 3 NOT USED 2,4,5 Features： • wideband, 0.5 to 1700 MHz • autotransformer • excellent return loss, 20 dB typ. in 1 dB bandwidth • aqueous washable • protected under US patent 6,133,525 Applications： • impedance matching • GPS • satellite distributor

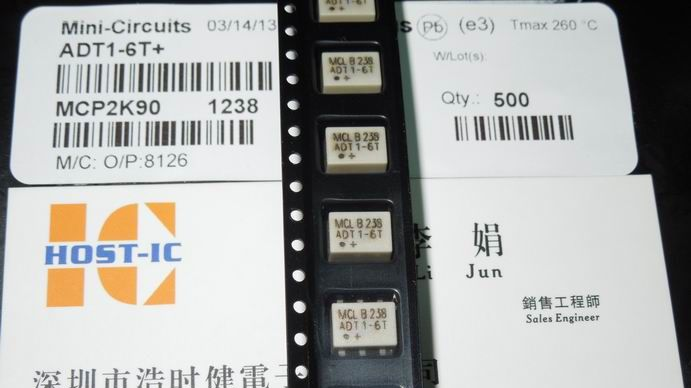

供应射频变压器 ADT1-6T+
信息内容：ADT1-6T+：Mini-Circuits 射频变压器 Surface Mount RF Transformer 50Ω 0.03 to 125 MHz Maximum Ratings Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.5W DC Current 30mA Permanent damage may occur if any of these limits are exceeded Pin Connections PRIMARY DOT 3 PRIMARY 1 SECONDARY DOT 4 SECONDARY 6 SECONARY CT 5 NOT USED 2 Features • excellent amplitude unbalance, 0.1 dB typ. and phase unbalance, 1 deg. typ. in 1dB bandwidth • excellent return loss, 18 dB typ. in 1 dB bandwidth • aqueous washable • protected under US patent 6,133,525 Applications • impedance matching • balanced amplifier
