价 格: | 面议 | |
型号/规格: | ADT1.5-17+ | |
品牌/商标: | Mini-Circuits | |
包装方式: | 多件包装 | |
主要用途: | 精密电子仪器仪表 | |
适用电源类别: | 单相 | |
铁芯类型: | E型 | |
频率特征: | 工频 | |
导线类型: | 铜导线 |

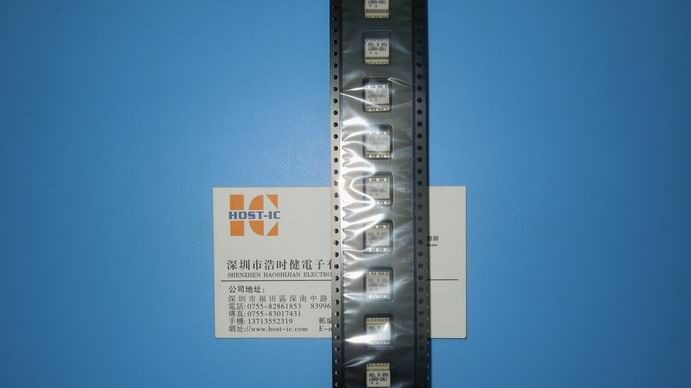

ADT1.5-17+:Mini-Circuits RF射频变压器 Surface Mount RF Transformer 50Ω 0.5 to 1700 MHz
Maximum Ratings:
Operating Temperature -20°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 0.25W
DC Current 30mA
Permanent damage may occur if any of these limits are exceeded
Pin Connections:
PRIMARY DOT 1
PRIMARY 3
SECONDARY DOT 6
SECONDARY 3
NOT USED 2,4,5
Features:
• wideband, 0.5 to 1700 MHz
• autotransformer
• excellent return loss, 20 dB typ. in 1 dB bandwidth
• aqueous washable
• protected under US patent 6,133,525
Applications:
• impedance matching
• GPS
• satellite distributor
ADT1-6T+:Mini-Circuits 射频变压器 Surface Mount RF Transformer 50Ω 0.03 to 125 MHz Maximum Ratings Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.5W DC Current 30mA Permanent damage may occur if any of these limits are exceeded Pin Connections PRIMARY DOT 3 PRIMARY 1 SECONDARY DOT 4 SECONDARY 6 SECONARY CT 5 NOT USED 2 Features • excellent amplitude unbalance, 0.1 dB typ. and phase unbalance, 1 deg. typ. in 1dB bandwidth • excellent return loss, 18 dB typ. in 1 dB bandwidth • aqueous washable • protected under US patent 6,133,525 Applications • impedance matching • balanced amplifier
LRMS-1MH+:Mini-Circuits混频器 Level 13 (LO Power +13dBm) 2 to 500 MHz Maximum Ratings: Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 200mW IF Current 40mA Permanent damage may occur if any of these limits are exceeded Pin Connections LO 1 RF 4 IF 5 GROUND 2,3,6 Features • low conversion loss, 6.11 dB typ. • excellent L-R isolation, 44 dB typ. Applications • VHF/UHF • instrumentation
