供应低通滤波器 PLP-300+
| 价 格： | 面议 | |
| 型号/规格： | PLP-300+ | |
| 品牌/商标： | Mini-Circuits |
PLP-300+：Mini-Circuits 低通滤波器 Plug-In Low Pass Filter 50Ω DC to 270 MHz
Maximum Ratings
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C
RF Power Input 0.5W max
Permanent damage may occur if any of these limits are exceeded.
Pin Connections
INPUT 1
OUTPUT 8
GROUND 2,3,4,5,6,7
CASE GROUND 2,3,4,5,6,7
Features
• rugged welded case, hermetic
• other standard and custom PLP models available with wide selection of fco
Applications
• test equipment
• lab use
• transmitters/receivers
• military/hi-rel applications
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：

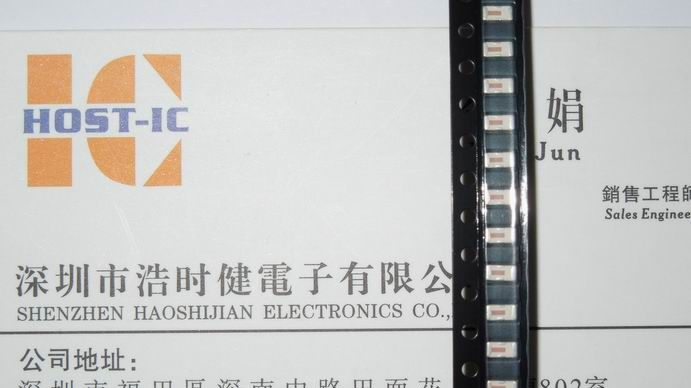

供应射频变压器 NCS2-33+
信息内容：NCS2-33+：Mini-Circuits RF射频变压器 Ceramic Balun RF Transformer 50Ω 1500 to 3100 MHz Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C Input RF Power*** 3W *** Derate linearly to 2W at 85°C Permanent damage may occur if any of these limits are exceeded Pad Connections PRIMARY DOT (Unbalanced Port) 1 PRIMARY (GND) 2 SECONDARY DOT (Balanced) 4 SECONDARY (Balanced) 3 NO CONNECTION* 6 NOT USED (GND Externally) 5 Pads 2,3,4 are DC-connected internally *Pad 6 must be open (See PL-264 below) Features • wideband, 1500 to 3100 MHz • low phase unbalance, 5 deg. and amplitude unbalance, 0.6 dB typ. • miniature size, 0.079”x0.049”x0.033” • LTCC construction • aqueous washable • low cost Applications • WLAN • WIMAX/WIBRO • MMDS...

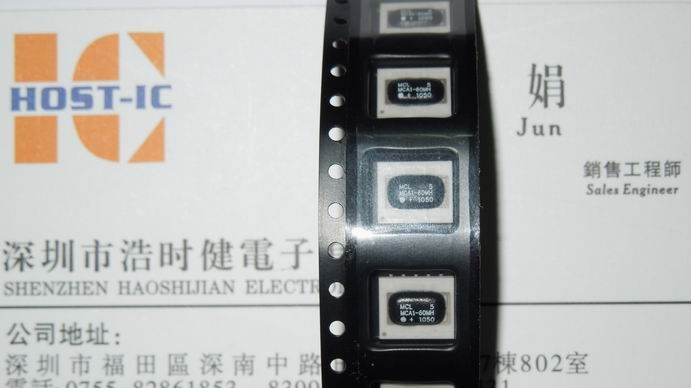

供应陶瓷混频器 MCA1-60MH+
信息内容：MCA1-60MH+：Mini-Circuits陶瓷混频器 Ceramic Frequency Mixer wide band Level 13 (LO Power+13 dBm) 1600 to 6000 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power 200 mW IF Current 40 mA Permanent damage may occur if any of these limits are exceeded. Pin Connections LO 10 RF 5 IF 3 GROUND 1,2,4,6,7,8,9 Features • wide bandwidth, 1600 to 6000 MHz • useable to 8000 MHz • low conversion loss, 6.2 dB typ. • IF, DC to 2000 MHz • LTCC double balanced mixer • aqueous washable • low cost • low profile, 0.08” • protected by US Patent 7,027,795 Applications • PCN • defense & weather radar • WCDMA • defense communications
