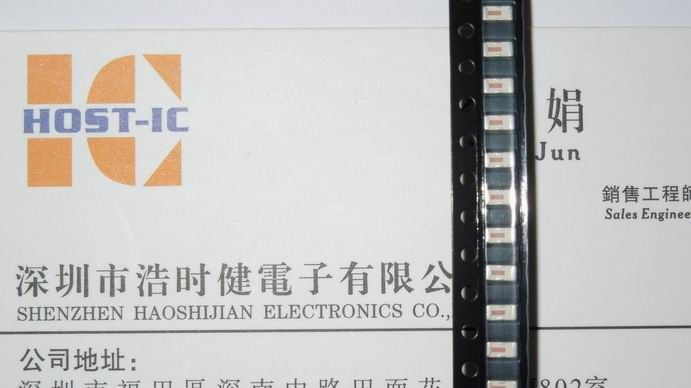

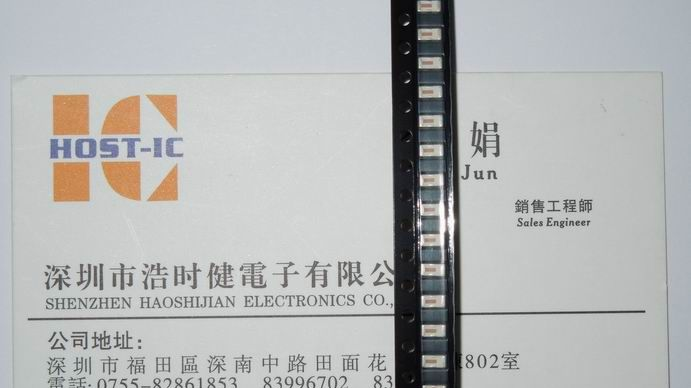

供应陶瓷混频器 MCA1-60MH+
| 价 格： | 面议 | |
| 型号/规格： | MCA1-60MH+ | |
| 品牌/商标： | Mini-Circuits |
MCA1-60MH+：Mini-Circuits陶瓷混频器 Ceramic Frequency Mixer wide band Level 13 (LO Power+13 dBm) 1600 to 6000 MHz
Maximum Ratings
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C
RF Power 200 mW
IF Current 40 mA
Permanent damage may occur if any of these limits are exceeded.
Pin Connections
LO 10
RF 5
IF 3
GROUND 1,2,4,6,7,8,9
Features
• wide bandwidth, 1600 to 6000 MHz
• useable to 8000 MHz
• low conversion loss, 6.2 dB typ.
• IF, DC to 2000 MHz
• LTCC double balanced mixer
• aqueous washable
• low cost
• low profile, 0.08”
• protected by US Patent 7,027,795
Applications
• PCN
• defense & weather radar
• WCDMA
• defense communications
