QCN-7+:Mini-Circuits超小型陶瓷功率分配器/合成 2 Way-90° 50Ω 425 to 675 MHz
Maximum Ratings:
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C
Power Input (as a splitter) 15W* max.
Derate linearly to 7W at 100°C ambient,Permanent damage may occur if any of these limits are exceeded.
Pin Connections
SUM PORT 1
PORT 1 (0°) 4
PORT 2 (+90°) 6
GROUND 2,5
50 OHM TERM EXTERNAL 3
Features
• low insertion loss, 0.4 dB typ.
• wrap-around terminal for excellent solderability
• ultra small, 0.12"X0.06"X0.035"
Applications
• UHF
• balanced amplifiers
• modulators
QCN-5+:Mini-Circuits 功率分配器 Ultra-Small Ceramic Power Splitter/Combiner 2 Way-90° 50Ω 330 to 580 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 15W* max. * Derate linearly to 7W at 100°C ambient. Permanent damage may occur if any of these limits are exceeded. Pin Connections SUM PORT 1 PORT 1 (0°) 4 PORT 2 (+90°) 6 GROUND 2,5 50 OHM TERM EXTERNAL 3 Features • low insertion loss, 0.4 dB typ. • high isolation, 22 dB typ. • wrap-around terminal for excellent solderability • ultra small, 0.12"X0.06"X0.035" Applications • balanced amplifiers • modulators • VHF • defense communication

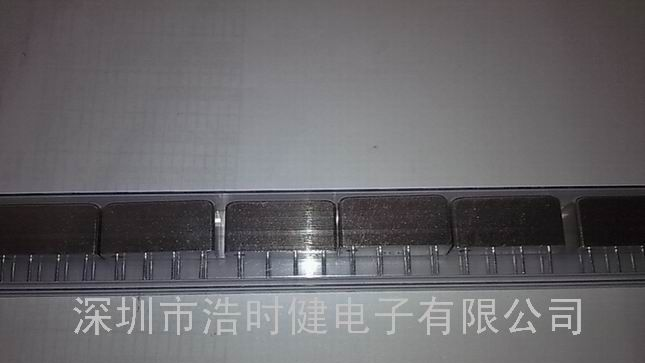

PLP-300+:Mini-Circuits 低通滤波器 Plug-In Low Pass Filter 50Ω DC to 270 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power Input 0.5W max Permanent damage may occur if any of these limits are exceeded. Pin Connections INPUT 1 OUTPUT 8 GROUND 2,3,4,5,6,7 CASE GROUND 2,3,4,5,6,7 Features • rugged welded case, hermetic • other standard and custom PLP models available with wide selection of fco Applications • test equipment • lab use • transmitters/receivers • military/hi-rel applications
