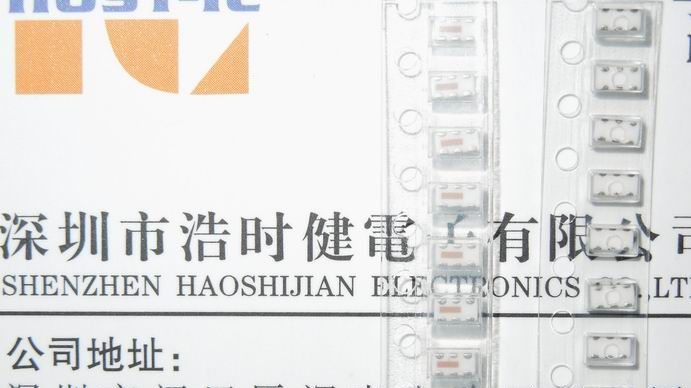

供应功率分配器 SBTC-2-10+
| 价 格： | 面议 | |
| 型号/规格： | SBTC-2-10+ | |
| 品牌/商标： | Mini-Circuits |
SBTC-2-10+：Mini-Circuits 功率分配器 Surface Mount Power Splitter/Combiners 2 Way-0° 50Ω 5 to 1000 MHz
Maximum Ratings
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 100°C
Power Input (as a splitter) 0.5W max.
Internal Dissipation 0.125W max
Pin Connections
SUM PORT 6
PORT 1 3
PORT 2 4
GROUND 1,2
NOT USED 5
Features
• low insertion loss, 0.3 dB typ.
• excellent amplitude unbalance, 0.1 dB typ.
• very good phase unbalance, 1.0 deg. typ.
• temperature stable LTCC base
• small size
• low cost
• aqueous washable
• protected by US patent 6,963,255
Applications
• UHF/VHF receivers/transmitters
• cellular
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：
供应功率分配器 QCN-8+
信息内容：QCN-8+：Mini-Circuits超小型陶瓷功率分配器/合成 2 Way-90° 50Ω 450 to 750 MHz Maximum Ratings： Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 15W* max. Derate linearly to 7W at 100°C ambient,Permanent damage may occur if any of these limits are exceeded. Pin Connections SUM PORT 1 PORT 1 (0°) 4 PORT 2 (+90°) 6 GROUND 2,5 50 OHM TERM EXTERNAL 3 Features • low insertion loss, 0.6 dB typ. • wrap-around terminal for excellent solderability • ultra small, 0.12"X0.06"X0.035" Applications • UHF • balanced amplifiers • modulators • point to point radio
供应功率分配器 QCN-7+
信息内容：QCN-7+：Mini-Circuits超小型陶瓷功率分配器/合成 2 Way-90° 50Ω 425 to 675 MHz Maximum Ratings： Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 15W* max. Derate linearly to 7W at 100°C ambient,Permanent damage may occur if any of these limits are exceeded. Pin Connections SUM PORT 1 PORT 1 (0°) 4 PORT 2 (+90°) 6 GROUND 2,5 50 OHM TERM EXTERNAL 3 Features • low insertion loss, 0.4 dB typ. • wrap-around terminal for excellent solderability • ultra small, 0.12"X0.06"X0.035" Applications • UHF • balanced amplifiers • modulators
