供应功率分配器 QCN-8+
| 价 格： | 面议 | |
| 型号/规格： | QCN-8+ | |
| 品牌/商标： | Mini-Circuits |

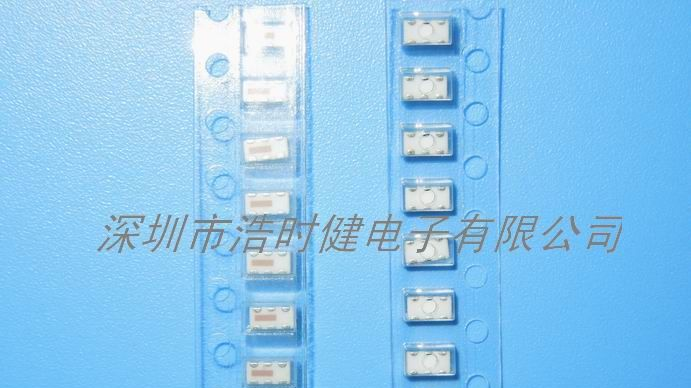

QCN-8+：Mini-Circuits超小型陶瓷功率分配器/合成 2 Way-90° 50Ω 450 to 750 MHz
Maximum Ratings：
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C
Power Input (as a splitter) 15W* max.
Derate linearly to 7W at 100°C ambient,Permanent damage may occur if any of these limits are exceeded.
Pin Connections
SUM PORT 1
PORT 1 (0°) 4
PORT 2 (+90°) 6
GROUND 2,5
50 OHM TERM EXTERNAL 3
Features
• low insertion loss, 0.6 dB typ.
• wrap-around terminal for excellent solderability
• ultra small, 0.12"X0.06"X0.035"
Applications
• UHF
• balanced amplifiers
• modulators
• point to point radio
