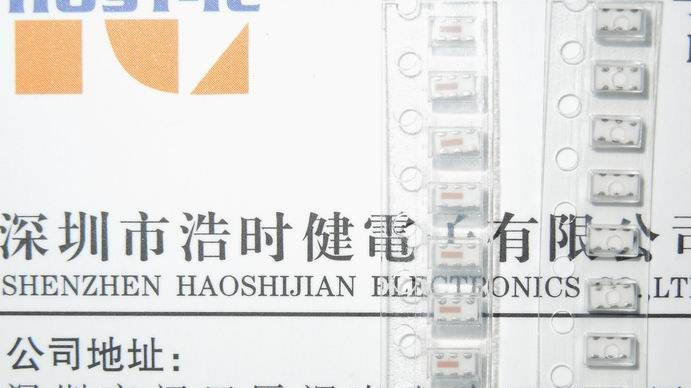

供应功率分配器 SBTC-2-20L+
| 价 格： | 面议 | |
| 型号/规格： | SBTC-2-20L+ | |
| 品牌/商标： | Mini-Circuits |
SBTC-2-20L+：Mini-Circuits功率分配器 Surface Mount Power Splitter/Combiners 2 Way-0° 50Ω 200 to 2000 MHz
Maximum Ratings：
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 100°C
Power Input (as a splitter) 0.5W max.
Internal Dissipation 0.125W max
Pin Connections
SUM PORT 6
PORT 1 3
PORT 2 4
GROUND 1,2
NOT USED 5
Features
• wide band frequency, 200-2000 MHz
• excellent amplitude unbalance, 0.2 dB typ.
• small size, 0.166”x0.15”x0.155”
• temperature stable LTCC base
• small size
• low cost
• aqueous washable
• protected by US patent 6,963,255
Applications
• cellular/GSM
• UHF/VHF receivers/transmitters
• PCN/PCS
• GPS
• VSAT
