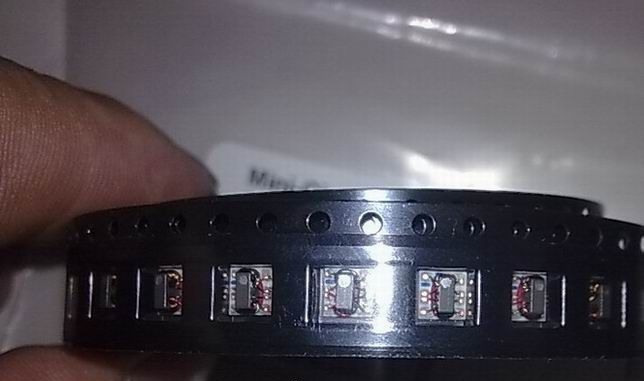

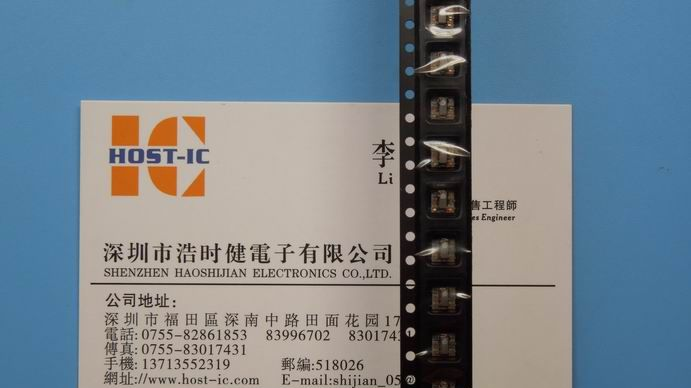

供应功率分配器 SCA-4-10+
| 价 格： | 面议 | |
| 型号/规格： | SCA-4-10+ | |
| 品牌/商标： | Mini-Circuits |
SCA-4-10+：Mini-Circuits功率分配器 Surface Mount Power Splitter/Combiner 4 Way-0° 50Ω 5 to 1000 MHz
Maximum Ratings
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 100°C
Power Input (as a splitter) 0.5W max.
Internal Dissipation 0.375W max.
Permanent damage may occur if any of these limits are exceeded.
Pin Connections
SUM PORT 3
PORT 1 6
PORT 2 7
PORT 3 9
PORT 4 10
GROUND 1,2,4,5,8
Features
• wideband, 5-1000 MHz
• high isolation, 25 dB typ.
• good matching VSWR, 1.20 typ.
• excellent amplitude unbalance, 0.3 dB typ.
• patent pending
Applications
• cellular
• UHF/VHF receivers/transmitters
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：
供应功率分配器 SBTC-2-20L+
信息内容：SBTC-2-20L+：Mini-Circuits功率分配器 Surface Mount Power Splitter/Combiners 2 Way-0° 50Ω 200 to 2000 MHz Maximum Ratings： Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 0.5W max. Internal Dissipation 0.125W max Pin Connections SUM PORT 6 PORT 1 3 PORT 2 4 GROUND 1,2 NOT USED 5 Features • wide band frequency, 200-2000 MHz • excellent amplitude unbalance, 0.2 dB typ. • small size, 0.166”x0.15”x0.155” • temperature stable LTCC base • small size • low cost • aqueous washable • protected by US patent 6,963,255 Applications • cellular/GSM • UHF/VHF receivers/transmitters • PCN/PCS • GPS • VSAT
供应功率分配器 SBTC-2-10+
信息内容：SBTC-2-10+：Mini-Circuits 功率分配器 Surface Mount Power Splitter/Combiners 2 Way-0° 50Ω 5 to 1000 MHz Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 0.5W max. Internal Dissipation 0.125W max Pin Connections SUM PORT 6 PORT 1 3 PORT 2 4 GROUND 1,2 NOT USED 5 Features • low insertion loss, 0.3 dB typ. • excellent amplitude unbalance, 0.1 dB typ. • very good phase unbalance, 1.0 deg. typ. • temperature stable LTCC base • small size • low cost • aqueous washable • protected by US patent 6,963,255 Applications • UHF/VHF receivers/transmitters • cellular
