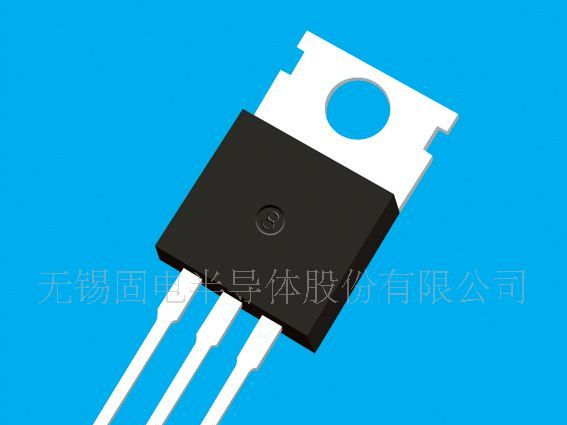

无锡固电ISC 供应2SB757三极管
| 价 格： | 7.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SB757 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | PNP型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -40V(Min)
·Good Linearity of hFE
·High Current Capability
·Wide Area of Safe Operation
·Complement to Type 2SD847
APPLICATIONS
·Audio amplifier applications
·Series regulators
·General purpose power amplifiers
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -40 | V |
VCEO | Collector-Emitter Voltage | -40 | V |
VEBO | Emitter-Base Voltage | -5 | V |
IC | Collector Current-Continuous | -15 | A |
IB | Base Current- Continuous | -5 | A |
PC | Collector Power Dissipation @ TC=25℃ | 80 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
THERMAL CHARACTERISTICS
SYMBOL | PARAMETER | MAX | UNIT |
Rthj-c | Thermal Resistance,Junction to Case | 1.56 | ℃/W |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= -10mA; IB= 0 | -40 |
| V | |
V(BR)CBO | Collector-BaseBreakdownVoltage | IC= -0.1mA; IE= 0 | -40 |
|
| V |
V(BR)EBO | Emitter-BaseBreakdownVoltage | IE= -0.1mA; IC= 0 | -5 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= -5.0A; IB= -0.5A |
|
| -0.8 | V |
VBE(sat) | Base-Emitter Saturation Voltage | IC= -5.0A; IB= -0.5A |
|
| -1.8 | V |
ICBO | Collector Cutoff Current | VCB= -40V; IE=0 |
|
| -10 | μA |
IEBO | Emitter Cutoff Current | VEB= -5V; IC=0 |
|
| -10 | μA |
hFE | DC Current Gain | IC= -5A; VCE= -2V | 40 |
| 240 |
|
Switching times | ||||||
ton | Turn-on Time | IC= -5A, IB1= -IB2= -1.5A, RL= 2Ω; PW= 20μs Duty≤2% |
|
| 1.0 | μs |
tstg | Storage Time |
|
| 2.0 | μs | |
tf | Fall Time |
|
| 1.0 | μs | |
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王燕
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：15961889150
- QQ ：

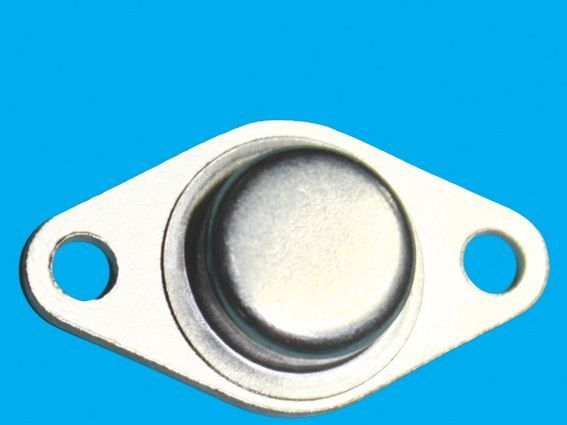

无锡固电ISC 供应2SA764三极管
信息内容：DESCRIPTION ·Collector-Emitter Breakdown Voltage-: V(BR)CEO= -60V(Min)·LowCollector Saturation Voltage-: VCE(sat)= 1.5V(Max.)@ IC= 4A·Complement to Type 2SC1444 APPLICATIONS·Designed for general purpose power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage -60VVCEOCollector-Emitter Voltage -60VVEBOEmitter-Base Voltage-6VICCollector Current-Continuous-6APCTotal Power Dissipation@ TC=25℃40WTJJunctionTemperature150℃TstgStorageTemperature Range-55~150℃ ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITV(BR)CEOCollector-Emitter Breakdown VoltageIC= -10mA; IB= 0-60 VV(BR)CBOCollector-BaseBreakdownVoltageIC= -1mA; IE= 0-60 VVCE(sat)Collector-Emitter Saturation VoltageIC= -4A; IB= -0.4A -1.5VVBE(sat)Base-Emitter Saturation VoltageIC= -4A; IB= -0.4A -2.0VICBOColle...
