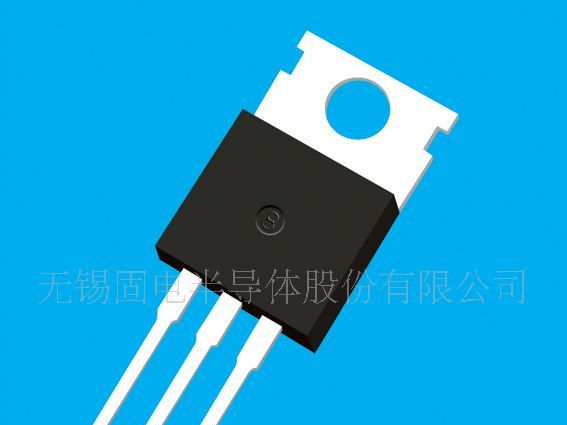

无锡固电ISC 供应2SA764三极管
| 价 格： | 10.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SA764 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | PNP型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 金属封装 |
DESCRIPTION
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -60V(Min)
·LowCollector Saturation Voltage-
: VCE(sat)= 1.5V(Max.)@ IC= 4A
·Complement to Type 2SC1444
APPLICATIONS
·Designed for general purpose power amplifier applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -60 | V |
VCEO | Collector-Emitter Voltage | -60 | V |
VEBO | Emitter-Base Voltage | -6 | V |
IC | Collector Current-Continuous | -6 | A |
PC | Total Power Dissipation @ TC=25℃ | 40 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= -10mA; IB= 0 | -60 |
|
| V |
V(BR)CBO | Collector-BaseBreakdownVoltage | IC= -1mA; IE= 0 | -60 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= -4A; IB= -0.4A |
|
| -1.5 | V |
VBE(sat) | Base-Emitter Saturation Voltage | IC= -4A; IB= -0.4A |
|
| -2.0 | V |
ICBO | Collector Cutoff Current | VCB= -60V; IE= 0 |
|
| -10 | μA |
IEBO | Emitter Cutoff Current | VEB= -6V; IC= 0 |
|
| -10 | μA |
hFE | DC Current Gain | IC= -1A; VCE= -4V | 50 |
|
|
|
fT | Current-Gain—Bandwidth Product | IC= -0.5A; VCE= -12V |
| 10 |
| MHz |
"
