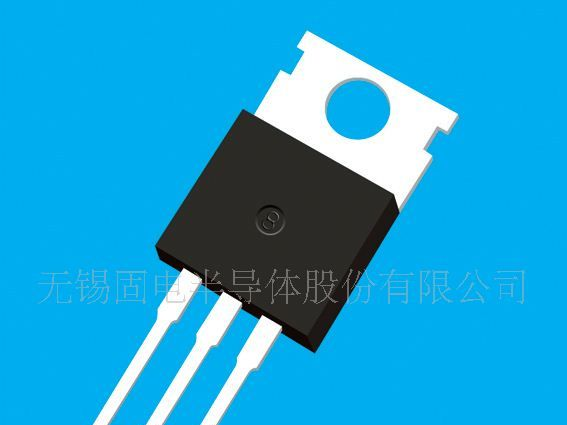

无锡固电ISC供应可控硅 BTA08-600C
| 价 格： | 2.00 | |
| 品牌/商标： | ISC/ISCSEMI | |
| 型号/规格： | BTA08-600C | |
| 控制方式： | 单向 | |
| 极数： | 三极 | |
| 封装材料： | 塑料封装 | |
| 封装外形： | TO-220 | |
| 关断速度： | 普通 | |
| 散热功能： | 带散热片 | |
| 频率特性： | 中频 | |
| 功率特性： | 中功率 | |
| 额定正向平均电流： | 8（A） | |
| 控制极触发电流： | 25（mA） | |
| 稳定工作电流： | 80（A） | |
| 反向重复峰值电压： | 600（V） |
Features
·With TO-220AB insulated package
·Suitables for general purpose applications where gate high sensitivity is
required. Application on 4Q such as phase control and static switching.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | MIN | UNIT |
VDRM | Repetitive peak off-state voltage | 600 | V |
VRRM | Repetitive peak reverse voltage | 600 | V |
IT(RMS) | RMS on-state current (full sine wave)Tj=105℃ | 8 | A |
ITSM | Non-repetitive peak on-state current tp=20ms | 80 | A |
Tj | Operating junction temperature | 110 | ℃ |
Tstg | Storage temperature | -45~150 | ℃ |
Rth(j-c) | Thermal resistance, junction to case | 2.5 | ℃/W |
Rth(j-a) | Thermal resistance, junction to ambient | 60 | ℃/W |
ELECTRICAL CHARACTERISTICS (TC=25℃unless otherwise specified)
SYMBOL | PARAMETER | CONDITIONS | MAX | UNIT | |
IRRM | Repetitive peak reverse current | VR=VRRM, VR=VRRM, Tj=110℃ | 0.01 0.5 | mA | |
IDRM | Repetitive peak off-state current | VD=VDRM, VD=VDRM, Tj=110℃ | 0.01 0.5 | mA | |
IGT | Gate trigger current | Ⅰ | VD=12V; RL= 30Ω | 25 | mA |
Ⅱ | 25 | ||||
Ⅲ | 25 | ||||
Ⅳ | 50 | ||||
IH | Holding current | IGT= 0.1A, Gate Open | 25 | mA | |
VGT | Gate trigger voltage all quadrant | VD=12V; RL= 30Ω | 1.3 | V | |
VTM | On-state voltage | IT= 11A; tp= 380μs | 1.55 | V | |
