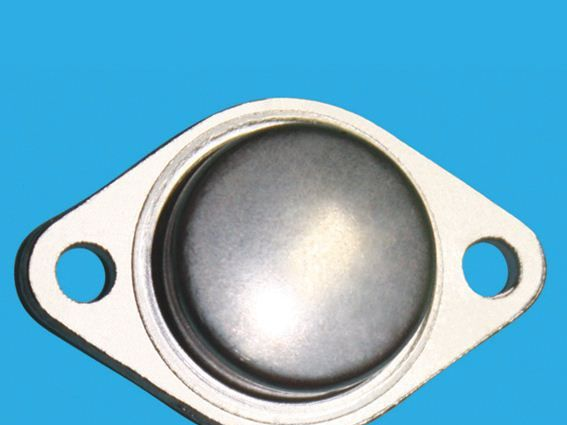

无锡固电供应iscsemi品牌BU926三极管
| 价 格： | 7.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | iscsemi | |
| 型号/规格： | BU926 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 击穿电压VCBO： | 400（V） | |
| 集电极允许电流ICM： | 8（A） | |
| 集电极耗散功率PCM： | 120（W） | |
| 截止频率fT： | 4（MHz） | |
| 结构： | 平面型 | |
| 封装形式： | TO-3PN | |
| 封装材料： | 塑料封装 |
iscSilicon NPN Power Transistor
DESCRIPTION
·Collector-Emitter Sustaining Voltage-
: VCEO(SUS)= 400V (Min)
·Low Saturation Voltage
: VCE(sat)= 1.5V (Max)@IC= 5A
APPLICATIONS
·Designed for use in high-voltage , high-speed , power
switching in inductive circuit.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Base-Emitter Voltage | 850 | V |
VCEO | Collector-Emitter Voltage | 400 | V |
VEBO | Emitter-Base Voltage | 7 | V |
IC | Collector Current- Continuous | 8 | A |
ICM | Collector Current-Peak | 10 | A |
IB | Base Current- Continuous | 2 | A |
PC | Collector Power Dissipation @ TC=25℃ | 120 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -65~150 | ℃ |
