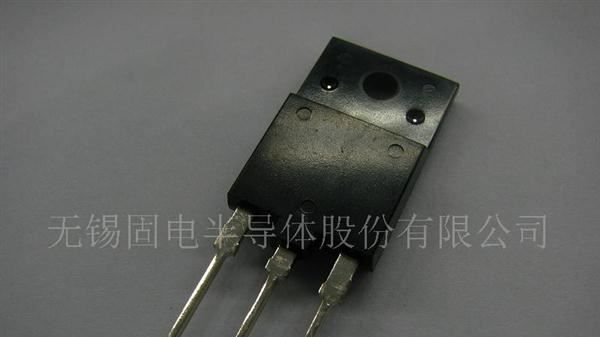

无锡固电ISC 供应2SA1041三极管
| 价 格： | 10.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SA1041 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | PNP型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·High Current Capability
·Good Linearity of hFE
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -120V(Min.)
·Complement to Type 2SC2431
APPLICATIONS
·Designed for high speed, high voltage switching systems.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -120 | V |
VCEO | Collector-Emitter Voltage | -120 | V |
VEBO | Emitter-Base Voltage | -5 | V |
IC | Collector Current-Continuous | -15 | A |
IB | Base Current-Continuous | -5 | A |
PC | Collector Power Dissipation @TC=25℃ | 100 | W |
Tj | Junction Temperature | 175 | ℃ |
Tstg | Storage Temperature | -65~175 | ℃ |
ELECTRICAL CHARACTERISTICS
Tj=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= -10mA; RBE=∞ | -120 |
|
| V |
V(BR)CBO | Collector-Base Breakdown Voltage | IC= -50μA; IE= 0 | -120 |
|
| V |
V(BR)EBO | Emitter-Base Breakdown Voltage | IE= -1mA; IC= 0 | -5 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= -7A; IB= -0.7A |
|
| -1.5 | V |
VBE(sat) | Base-Emitter Saturation Voltage | IC= -7A; IB= -0.7A |
|
| -1.8 | V |
ICBO | Collector Cutoff Current | VCB= -120V; IE= 0 |
|
| -50 | μA |
ICEO | Collector Cutoff Current | VCE= -120V; IB= 0 |
|
| -1 | μA |
IEBO | Emitter Cutoff Current | VEB= -4V; IC= 0 |
|
| -50 | μA |
hFE-1 | DC Current Gain | IC= -1.5A; VCE= -5V | 35 |
| 200 |
|
hFE-2 | DC Current Gain | IC= -15A; VCE= -5V | 7 |
|
|
|
COB | Output Capacitance | IE= 0; VCB= -10V; f= 1.0MHz |
| 350 |
| pF |
fT | Current-Gain—Bandwidth Product | IC= -1A; VCE= -10V |
| 60 |
| MHz |
Switching Times | ||||||
tr | Rise Time | IC= -7.5A; IB1= -IB2= -0.75A; RL= 4Ω |
|
| 0.8 | μs |
tstg | Storage Time |
|
| 1.0 | μs | |
tf | Fall Time |
|
| 0.8 | μs | |
