无锡固电ISC 供应三极管2SA1068
信息内容：DESCRIPTION ·Collector-Emitter Breakdown Voltage-: V(BR)CEO= -150V(Min.)·Good Linearity of hFE·WideArea of Safe Operation APPLICATIONS·Designed for AF amplifier, high power amplifier applications. Absolute maximum ratings(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage-150VVCEOCollector-Emitter Voltage-150VVEBOEmitter-Base Voltage-5VICCollector Current-Continuous -10AICMCollector Current-Peak -15APCCollector Power Dissipation@TC=25℃100WTjJunction Temperature150℃TstgStorage Temperature-65~150℃ ELECTRICAL CHARACTERISTICSTj=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITV(BR)CEOCollector-Emitter Breakdown VoltageIC= -100mA; IB= 0-150 VVCE(sat)Collector-Emitter Saturation VoltageIC= -5A; IB= -0.5A -2.0VVBE(sat)Base-Emitter Saturation VoltageIC= -5A; IB= -0.5A -2.5VICBOCollector Cutoff CurrentVCB= -150V; IE= 0 -0.1mAIEBOEmitter Cutoff CurrentVEB= -5V; IC= 0 -0.1mAhFEDC Current GainIC= -3A; VCE= -4V30...

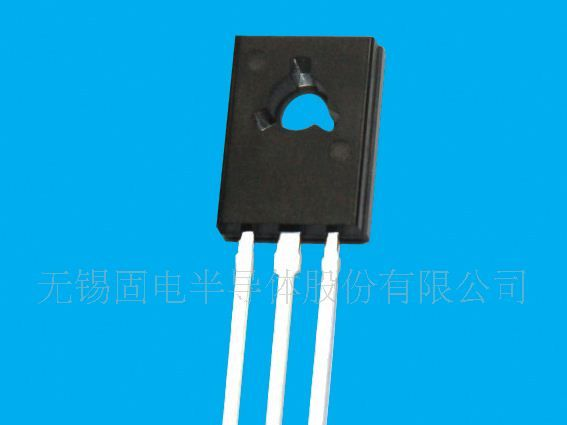

无锡固电ISC供应2SB772三极管
信息内容：供应2SB772三极管 TO-126有意者联系!DESCRIPTION ·High Collector Current -IC= -3A·High Collector-Emitter Breakdown Voltage- : V(BR)CEO= -30V(Min)·Good Linearity of hFE·LowSaturation Voltage·Complement to Type 2SD882 APPLICATIONS·Designed for use in the output stage of 3 watts audio amp-lifier, voltage regulator, DC-DC converter and relay driver. ABSOLUTE MAXIMUM RATINGS(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage -40VVCEOCollector-Emitter Voltage -30VVEBOEmitter-Base Voltage-5VICCollector Current-Continuous-3AICPCollector Current-Pulse-7APCCollector Power Dissipation@ TC=25℃10WCollector Power Dissipation@ Ta=25℃1TJJunctionTemperature150℃TstgStorageTemperature Range-55~150℃ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITVCE(sat)Collector-Emitter Saturation VoltageIC= -2A; IB= -0.2A -0.5...
