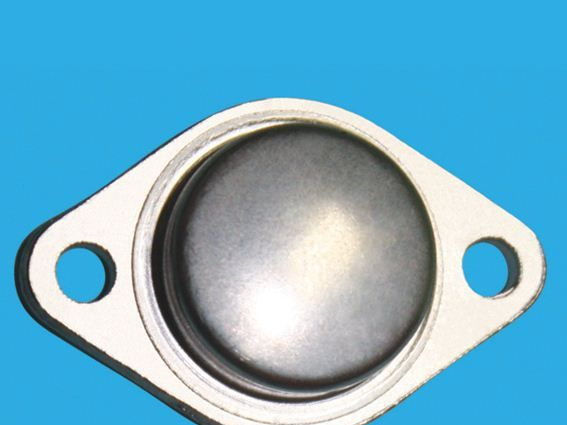

无锡固电ISC 供应三极管2SA981
| 价 格： | 10.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SA981 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | PNP型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 金属封装 |
DESCRIPTION
·High Power Dissipation-
: PC= 80W(Max.)@TC=25℃
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -120V(Min.)
·Complement to Type 2SC2261
APPLICATIONS
·Designed for general purpose applications.
Absolute maximum ratings(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -120 | V |
VCEO | Collector-Emitter Voltage | -120 | V |
VEBO | Emitter-Base Voltage | -6 | V |
IC | Collector Current-Continuous | -8 | A |
IB | Base Current-Continuous | -3 | A |
PC | Collector Power Dissipation @TC=25℃ | 80 | W |
Tj | Junction Temperature | 150 | ℃ |
Tstg | Storage Temperature | -65~150 | ℃ |
ELECTRICAL CHARACTERISTICS
Tj=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= -50mA ;IB= 0 | -120 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= -3A; IB= -0.3A |
|
| -1.5 | V |
ICBO | Collector Cutoff Current | VCB= -120V; IE= 0 |
|
| -1.0 | mA |
IEBO | Emitter Cutoff Current | VEB= -6V; IC= 0 |
|
| -1.0 | mA |
hFE | DC Current Gain | IC= -3A; VCE= -4V | 30 |
|
|
|
fT | Current-Gain—Bandwidth Product | IE= 0.5A; VCE= -12V |
| 20 |
| MHz |
Switching times | ||||||
tr | Rise Time | IC= -3A ,RL= 4Ω, VCC=-12V IB1= -0.2A; IB2= 0.1A |
| 0.85 |
| μs |
tstg | Storage Time |
| 2.0 |
| μs | |
tf | Fall Time |
| 0.3 |
| μs | |
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王燕
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：15961889150
- QQ ：

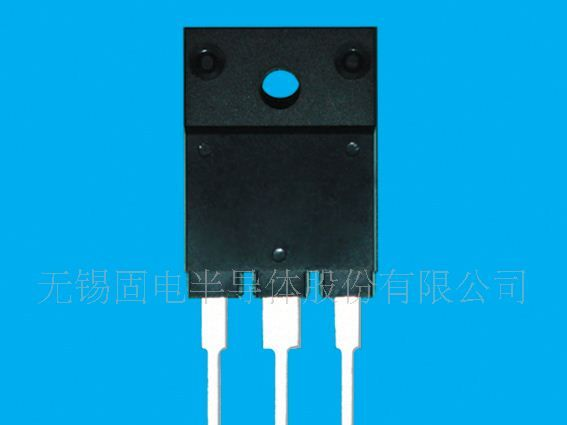

无锡固电ISC供应2SC4581三极管
