FCS供应群創5寸寬液晶屏AT050TN33v.1
| 价 格： | 140.00 | |
| 品牌/商标： | Innolux/群创 | |
| 型号/规格： | AT050TN33 v.1 | |
| 种类： | TN型液晶屏(模块) | |
| 屏幕尺寸： | 5（英寸） |
| AT050TN33 | AT050TN33 V.1 |
| 5.0'' | 5.0'' |
| 120.70X75.80X4.25 | 120.70X75.80X3.1 |
| w/i | w/o |
| 110.88X62.832 | 110.88X62.832 |
| Transmissive | Transmissive |
| 480X3(RGB)X272 | 480X3(RGB)X272 |
| 50/70/70/70 | 50/70/70/70 |
| 16:9 | 16:9 |
| 300 | (350) |
| 500 | 500 |
| 25 | 25 |
| 0.077(W)X0.231(H) | 0.077(W)X0.231(H) |
| 110 | 110 |
| 0.855 | 0.875 |
| 83 | TBD |
| Digital ( 40 Pin,24bit) | Digital ( 40 Pin,24bit) |
| 12LEDs | 12LEDs |
| -20~70 | -20~70 |
| -30~80 | -30~80 |
| 40℃,90% RH | 60℃,90% RH |
| - | _ |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 黄熙承
- 电话：0755-83954981
- 传真：0755-83954981
- 手机：
- QQ ：
香港交瀚彩10.1寸液晶屏HSD101PFW1-A
信息内容：*香港大量现货供应10寸，10.1寸笔记本面板，品牌奇美，群创，瀚彩，美金结算，起订量1000pcs，需要的工厂请电询 1.1 IntroductionHannStar Display model HSD101PFW1-A is a color active matrix thin filmtransistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as aswitching device. This model is composed of a TFT LCD panel, a driving circuitand a back light system. This TFT LCD has a 10.1 (16:9) inch diagonallymeasured active display area with WSVGA (1024 horizontal by 576 vertical pixel)resolution.1.2 Features10.1 (16:9 diagonal) inch configurationOne channel LVDS interface262K color by 6 bit R.G.B signal inputRoHS ComplianceHalogen Free1.3 ApplicationsMobile NBDigital Photo frameDisplay terminal for AV application1.4 General informationItem Specification UnitOutline Dimension 235 x 143 x 4.9 (Typ.) mmDisplay area 222.72(H) x 125.28(V) mmNumber of Pixel 1024 RGB (H) x 576(V) pixelsPixel pitch 0.2175(H) x 0.2175(V) mmPixel arrangement RGB Vertical stripeDisplay mode Normal...
香港供应LG9.7寸液晶屏LP097X02-SLAA 4:3 1024X768

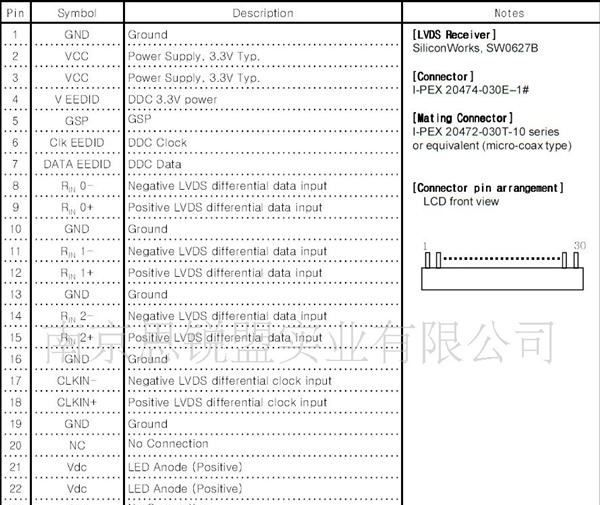

信息内容：dzsc/19/0634/19063472.jpgdzsc/19/0634/19063472.jpgThe LP097X02 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. Thematrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating inthe normally Black mode. This TFT-LCD has 9.7 inches diagonally measured active display area with XGAresolution(1024 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue subpixelsor dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color isdetermined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors.The LP097X02 has been designed to apply the interface method that enables low power, high speed, low EMI.The LP097X02 is intended to support applications where thin thickness, low power are critical factors andgraphic displays are important. In combination with the vertical arrangement of the sub-pixels, ...
