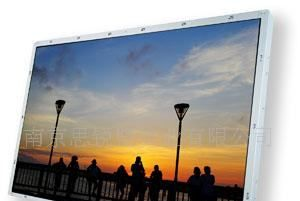

香港供应LG9.7寸液晶屏LP097X02-SLAA 4:3 1024X768
| 价 格： | 32.00 | |
| 加工定制： | 否 | |
| 品牌/商标： | LG | |
| 型号/规格： | LP097X02-SLAA | |
| 种类： | LCD液晶屏 | |
| 屏幕尺寸： | 10（英寸） |
dzsc/19/0634/19063472.jpg
dzsc/19/0634/19063472.jpg
The LP097X02 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally Black mode. This TFT-LCD has 9.7 inches diagonally measured active display area with XGA
resolution(1024 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue subpixels
or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors.
The LP097X02 has been designed to apply the interface method that enables low power, high speed, low EMI.
The LP097X02 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP097X02
characteristics provide an excellent flat display for office automation products such as Notebook PC.
Active Screen Size 9.7 inches diagonal
Outline Dimension 210.53(H) × 166.53 (V) × 3.51(D, Max.) mm
※
PCB area : 5.82(Max.)
Pixel Pitch 0.192 mm × 0.192 mm
Pixel Format 1024 horiz. by 768 vert. Pixels RGB strip arrangement
Color Depth 6-bit, 262,144 colors
Luminance, White 200 cd/m2(Typ., @ILED=TBDmA)
Power Consumption Logic : 0.8W,
Back Light : TBDW (typ.@ ILED= TBDmA)
Weight 156g (Max.)
Display Operating Mode Transmissive mode, normally Black
Surface Treatment Glare, Anti-reflective treatment of the front polarizer, 3H
Packing Form
a) Package quantity in one box : 40 pcs
b) Box Size : 455mm × 342mm × 281mm
注：该模组为200亮度，另有三星400亮度可供选择，具体价格和交货方式请与我们联系具体洽谈Email：tomko2008@foxmail.com
