供应 0.80英寸三位 数码管
| 价 格： | 4.60 | |
| 是否提供加工定制： | 是 | |
| 种类： | LED数码管 | |
| 型号： | BL-T80A-31,BL-T80B-31 | |
| 品牌： | BETLUX | |
| 显示颜色： | 全彩 | |
| 显示方式： | 静态显示 | |
| 像素直径： | Ф2（mm） | |
| 像素间距： | 多种（mm） | |
| 模组尺寸： | 多种（mm） | |
| 屏幕尺寸： | 多种（英寸） | |
| 亮度： | 高亮 | |
| 灰度： | 标准 | |
| 像素： | 标准 | |
| 分辨率： | 标准 | |
| 使用环境： | 半户外 | |
| 安装方式： | 镶嵌式 |
特点:
0.80英寸三位数LED数码管
0.80英寸的数字高(20.30mm)
宽度*高度:59.20*27.50mm
低电流操作
共阴共阳可选
优良的品质外观
输出亮度高
易于安装在PC板和PC槽上
IC兼容
多种颜色可选
标准:灰面白字
符合RoHs
Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)
| Part No Common Cathode | Part No Common Anode | Color | Wave length | (V) typ | (V) Max | Bright (mcd) |
| BL-T80A-31H | BL-T80B-31H | Red | 700 | 2.25 | 2.6 | 12 |
| BL-T80A-31D | BL-T80B-31D | Super Red | 660 | 1.85 | 2.2 | 130 |
| BL-T80A-31S | BL-T80B-31S | Hi Red | 660 | 1.85 | 2.2 | 120 |
| BL-T80A-31UR | BL-T80B-31UR | Ultra Red | 660 | 1.85 | 2.2 | 140 |
| BL-T80A-31E | BL-T80B-31E | Orange | 635 | 2.1 | 2.5 | 75 |
| BL-T80A-31UE | BL-T80B-31UE | Ultra Orange | 630 | 2.1 | 2.5 | 120 |
| BL-T80A-31UY | BL-T80B-31UY | Ultra Yellow | 590 | 2.1 | 2.5 | 125 |
| BL-T80A-31Y | BL-T80B-31Y | Yellow | 585 | 2.1 | 2.5 | 70 |
| BL-T80A-31UG | BL-T80B-31UG | Ultra Green | 574 | 2.2 | 2.5 | 145 |
| BL-T80A-31G | BL-T80B-31G | Green | 570 | 2.2 | 2.5 | 75 |
| BL-T80A-31PG | BL-T80B-31PG | Ultra Pure Green | 525 | 3.0 | 4.2 | 210 |
| BL-T80A-31UB | BL-T80B-31UB | ultra Blue | 470 | 3.0 | 4.2 | 110 |
| BL-T80A-31B | BL-T80B-31B | ultra Blue | 470 | 3.0 | 4.2 | 75 |
| BL-T80A-31W | BL-T80B-31W | Ultra White | / | 2.7 | 4.2 | 140 |
Package configuration & Internal circuit diagram
dzsc/18/9813/18981389.jpg
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to 80 | °C | ||||||
| Storage Temperature TSTG | -40 to 85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
Absolute maximum ratings (Ta= 25°C)
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to 80 | °C | |||||||
| Storage Temperature TSTG | -40 to 85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
- 所属城市：浙江 宁波
- [联系时请说明来自维库仪器仪表网]
- 联系人： 唐先生
- 电话：574-88087719
- 传真：574-88087729
- 手机：
- QQ ：
供应 优质 17.8mm 5*7 绿光 点阵
信息内容：特点: 17.80mm(0.7)Φ1.8LED点阵 低电流操作 优良的品质外观 易于安装在PC板和PC槽上 智能卡兼容 符合ROHS Super Bright Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Part NoChipVFUnit:VIv TYP.(mcd) Row Cathode Column AnodeRow AnodeColumn CathodeEmitted ColorMateriallP(nm) TypMax BL-M07A571S-XXBL-M07B571S-XXHi RedGaAlAs/GaAs,SH6601.852.20100 BL-M07A571D-XXBL-M07B571D-XXSuper RedGaAlAs/GaAs,DH6601.852.20110 BL-M07A571UR-XXBL-M07B571UR-XXUltra RedGaAlAs/GaAs,DDH6601.852.20120 BL-M07A571E-XXBL-M07B571E-XXOrangeGaAsP/GaP6352.102.5090 BL-M07A571Y-XXBL-M07B571Y-XXYellowGaAsP/GaP5852.102.5090 BL-M07A571G-XXBL-M07B571G-XXGreenGaP/GaP5702.202.5085 n Absolute maximum ratings (Ta=25°C)ParameterUHRUEYOUYUGPGBWUnitForward Current IF3030303030303030mAPower Dissipation Pd7565656575110120120mWReverse Voltage VR55555555VPeak Forward Current IPF(Duty 1/10 @1KHZ) 150150150150150150100100mAOperation Temperature TOPR-40 to 80°CStorage Temp...

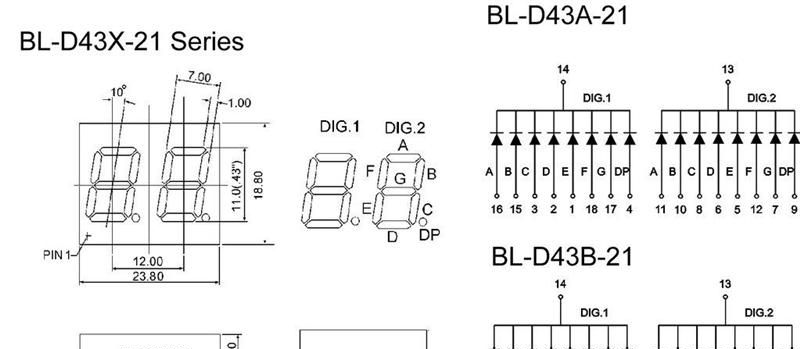

供应 优质 0.4英寸绿色 双位数码管
