供应 优质 17.8mm 5*7 绿光 点阵
| 价 格： | 5.00 | |
| 是否提供加工定制： | 是 | |
| 种类： | LED点阵 | |
| 型号： | BL-M07A571G-21 | |
| 品牌： | BETLUX | |
| 显示颜色： | 全彩 | |
| 显示方式： | 静态显示 | |
| 像素直径： | Ф2（mm） | |
| 像素间距： | 标准（mm） | |
| 模组尺寸： | 标准（mm） | |
| 屏幕尺寸： | 标准（英寸） | |
| 亮度： | 高亮 | |
| 灰度： | 标准 | |
| 像素： | 标准 | |
| 分辨率： | 标准 | |
| 使用环境： | 半户外 | |
| 安装方式： | 镶嵌式 |
特点:
17.80mm(0.7)Φ1.8LED点阵
低电流操作
优良的品质外观
易于安装在PC板和PC槽上
智能卡兼容
符合ROHS
Super Bright
Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Row Cathode Column Anode | Row Anode Column Cathode | Emitted Color | Material | lP (nm) | ||||
Typ | Max | |||||||
BL-M07A571S-XX | BL-M07B571S-XX | Hi Red | GaAlAs/GaAs,SH | 660 | 1.85 | 2.20 | 100 |
|
BL-M07A571D-XX | BL-M07B571D-XX | Super Red | GaAlAs/GaAs,DH | 660 | 1.85 | 2.20 | 110 |
|
BL-M07A571UR-XX | BL-M07B571UR-XX | Ultra Red | GaAlAs/GaAs,DDH | 660 | 1.85 | 2.20 | 120 |
|
BL-M07A571E-XX | BL-M07B571E-XX | Orange | GaAsP/GaP | 635 | 2.10 | 2.50 | 90 |
|
BL-M07A571Y-XX | BL-M07B571Y-XX | Yellow | GaAsP/GaP | 585 | 2.10 | 2.50 | 90 |
|
BL-M07A571G-XX | BL-M07B571G-XX | Green | GaP/GaP | 570 | 2.20 | 2.50 | 85 |
|
n Absolute maximum ratings (Ta=25°C)
Parameter | UHR | UE | YO | UY | UG | PG | B | W | Unit |
Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
Operation Temperature TOPR | -40 to 80 | °C | |||||||
Storage Temperature TSTG | -40 to 85 | °C | |||||||
Lead Soldering TemperatureTSOL |
Max.260±5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||
dzsc/18/9861/18986141.jpg
- 所属城市：浙江 宁波
- [联系时请说明来自维库仪器仪表网]
- 联系人： 唐先生
- 电话：574-88087719
- 传真：574-88087729
- 手机：
- QQ ：
供应 优质 0.4英寸绿色 双位数码管
信息内容：特点:0.4英寸双位LED数码管0.4英寸数字高度（11.00mm）宽*高：23.80*18.80mm ；低电流操作共阴共阳可选 易于安装IC兼容 标准：灰面白字n Super Bright Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Part NoChipVFUnit:VIv TYP.(mcd) Common CathodeCommon AnodeEmitted ColorMateriallP(nm) TypMax BL-D43A-21S-XXBL-D43B-21S-XXHi RedGaAlAs/GaAs,SH6601.852.20100 BL-D43A-21D-XXBL-D43B-21D-XXSuper RedGaAlAs/GaAs,DH6601.852.20160 BL-D43A-21UR-XXBL-D43B-21UR-XXUltra RedGaAlAs/GaAs,DDH6601.852.20190 BL-D43A-21E-XXBL-D43B-21E-XXOrangeGaAsP/GaP6352.102.5060 BL-D43A-21Y-XXBL-D43B-21Y-XXYellowGaAsP/GaP5852.102.5055 BL-D43A-21G-XXBL-D43B-21G-XXGreenGaP/GaP5702.202.5040 n Ultra Bright Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Part NoChipVFUnit:VIv TYP.(mcd) Common CathodeCommon AnodeEmitted ColorMateriallP(nm) TypMax BL-D43A-21UHR-XXBL-D43B-21UHR-XXUltra RedAlGaInP6452.102.50190 BL-D43A-21UE-XXBL-D43B-21UE-XXUltra OrangeAlGaInP6...

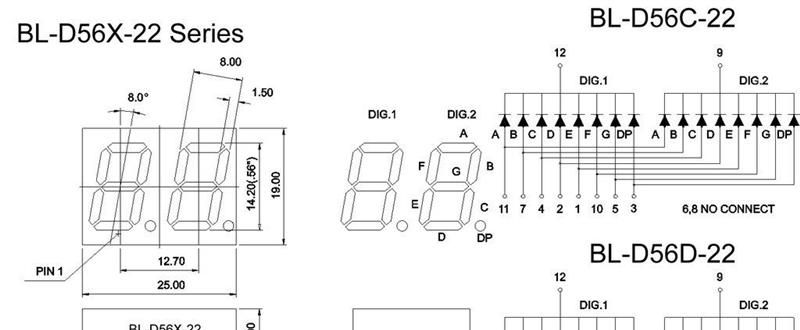

供应优质 红色 0.56双位 数码管
