供应 1.5英寸 8*8点阵 双色数码管
| 价 格： | 面议 | |
| 是否提供加工定制： | 是 | |
| 种类： | LED点阵 | |
| 型号/规格： | BL-M15A881EG | |
| 品牌/商标： | BETLUX | |
| 显示颜色： | 全彩 | |
| 显示方式： | 静态显示 | |
| 像素直径： | Ф3（mm） | |
| 像素间距： | 标准（mm） | |
| 模组尺寸： | 标准（mm） | |
| 屏幕尺寸： | 标准（英寸） | |
| 亮度： | 高亮 | |
| 灰度： | 标准 | |
| 像素： | 标准 | |
| 分辨率： | 标准 | |
| 安装方式： | 镶嵌式 |
特点:
38.00mm(1.5)Φ3.7LED点阵
低电流操作
优良的品质外观
容易安装在PC板和PC槽上
智能卡兼容
符合ROHS
Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Row Cathode Column Anode | Row Anode Column Cathode | Emitted Color | Material | lP (nm) | ||||
Typ | Max | |||||||
BL-M15A881SG-XX | BL-M15B881SG-XX | Super Red | AlGaInP | 660 | 2.10 | 2.50 | 250 | |
Green | GaP/GaP | 570 | 2.20 | 2.50 | 195 | |||
BL-M15A881EG-XX | BL-M15B881EG-XX | Orange | GaAsP/GaP | 635 | 2.10 | 2.50 | 190 |
|
Green | GaP/GaP | 570 | 2.20 | 2.50 | 195 | |||
BL-M15A881DUG-XX | BL-M15B881DUG-XX | Ultra Red | AlGaInP | 660 | 2.10 | 2.50 | 320 | |
Ultra Green | AlGaInP | 574 | 2.20 | 2.50 | 250 | |||
BL-M15A881UEUG-XX | BL-M15B881UEUG-XX | Ultra Orange | AlGaInP | 630 | 2.10 | 2.50 | 235 | |
Ultra Green | AlGaInP | 574 | 2.20 | 2.50 | 250 |
| ||
n -XX: Surface / Lens color：
Number | 0 | 1 | 2 | 3 | 4 | 5 |
Ref Surface Color | White | Black | Gray | Red | Green |
|
Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
|
- 所属城市：浙江 宁波
- [联系时请说明来自维库仪器仪表网]
- 联系人： 唐先生
- 电话：574-88087719
- 传真：574-88087729
- 手机：
- QQ ：
供应 0.80英寸三位 数码管
信息内容：特点: 0.80英寸三位数LED数码管 0.80英寸的数字高(20.30mm) 宽度*高度:59.20*27.50mm 低电流操作 共阴共阳可选 优良的品质外观 输出亮度高 易于安装在PC板和PC槽上 IC兼容 多种颜色可选 标准:灰面白字 符合RoHs Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)Part No Common CathodePart No Common AnodeColorWave length(V) typ(V) MaxBright (mcd)BL-T80A-31HBL-T80B-31HRed7002.252.612BL-T80A-31DBL-T80B-31DSuper Red6601.852.2130BL-T80A-31SBL-T80B-31SHi Red6601.852.2120BL-T80A-31URBL-T80B-31URUltra Red6601.852.2140BL-T80A-31EBL-T80B-31EOrange6352.12.575BL-T80A-31UEBL-T80B-31UEUltra Orange6302.12.5120BL-T80A-31UYBL-T80B-31UYUltra Yellow5902.12.5125BL-T80A-31YBL-T80B-31YYellow5852.12.570BL-T80A-31UGBL-T80B-31UGUltra Green5742.22.5145BL-T80A-31GBL-T80B-31GGreen5702.22.575BL-T80A-31PGBL-T80B-31PGUltra Pure Green5253.04.2210BL-T80A-31UBBL-T80B-31UBultra Blue4703.04...

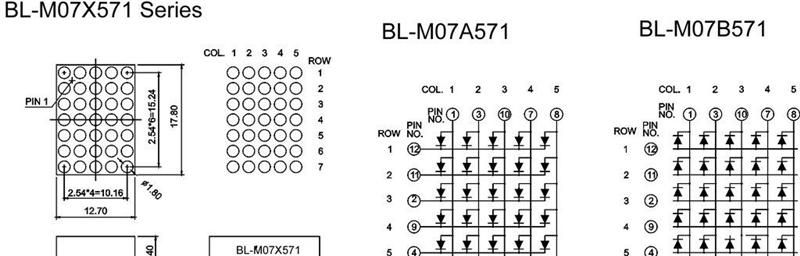

供应 优质 17.8mm 5*7 绿光 点阵
