供应 1.9英寸8x8 LED 点阵
| 价 格： | 面议 | |
| 是否提供加工定制： | 是 | |
| 种类： | LED点阵 | |
| 型号： | BL-M19X881 SERIES | |
| 品牌： | BETLUX | |
| 显示颜色： | 全彩 | |
| 显示方式： | 其他 | |
| 像素直径： | 其他（mm） | |
| 像素间距： | 多种（mm） | |
| 模组尺寸： | 多种（mm） | |
| 屏幕尺寸： | 多种（英寸） | |
| 亮度： | 高亮 | |
| 灰度： | 标准 | |
| 像素： | 标准 | |
| 分辨率： | 标准 | |
| 使用环境： | 半户外 | |
| 安装方式： | 镶嵌式 |
特征
行:8,列:8
矩阵高度：19英寸
网点大小：4.80mm
低电流操作
高对比度，输出亮度较高
兼容ASCII码和EBCDIC代码
水平叠加
共阴共阳可选
便于安装在PC板和PC槽上
多种颜色可选
标准:灰面白点
ROHS遵守。
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Row Cathode Column Anode | Row Anode Column Cathode | Emitted Color | Material | lP (nm) | Super Bright ELECTRICAL-optical characteristic：（Ta=25°c）(Test condition:IF=20mA)||||
Typ | Max | |||||||
BL-M19A881S-XX | BL-M19B881S-XX | Hi Red | GaAlAs/GaAs,SH | 660 | 1.85 | 2.20 | 270 |
|
BL-M19A881D-XX | BL-M19B881D-XX | Super Red | GaAlAs/GaAs,DH | 660 | 1.85 | 2.20 | 310 |
|
BL-M19A881UR-XX | BL-M19B881UR-XX | Ultra Red | GaAlAs/GaAs,DDH | 660 | 1.85 | 2.20 | 450 |
|
BL-M19A881E-XX | BL-M19B881E-XX | Orange | GaAsP/GaP | 635 | 2.10 | 2.50 | 220 |
|
BL-M19A881Y-XX | BL-M19B881Y-XX | Yellow | GaAsP/GaP | 585 | 2.10 | 2.50 | 220 |
|
BL-M19A881G-XX | BL-M19B881G-XX | Green | GaP/GaP | 570 | 2.20 | 2.50 | 240 |
|
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Row Cathode Column Anode | Row Anode Column Cathode | Emitted Color | Material | lP (nm) | Ultra BrightElectrical-optical characteristics: (Ta=25°C)(Test Condition: IF=20mA)||||
Typ | Max | |||||||
BL-M19A881UHR-XX | BL-M19B881UHR-XX | Ultra Red | AlGaInP | 645 | 2.10 | 2.50 | 450 |
|
BL-M19A881UE-XX | BL-M19B881UE-XX | Ultra Orange | AlGaInP | 630 | 2.10 | 2.50 | 255 |
|
BL-M19A881YO-XX | BL-M19B881YO-XX | Ultra Amber | AlGaInP | 619 | 2.10 | 2.50 | 255 |
|
BL-M19A881UY-XX | BL-M19B881UY-XX | Ultra Yellow | AlGaInP | 590 | 2.10 | 2.50 | 255 |
|
BL-M19A881UG-XX | BL-M19B881UG-XX | Ultra Green | AlGaInP | 574 | 2.20 | 2.50 | 380 |
|
BL-M19A881PG-XX | BL-M19B881PG-XX | Ultra Pure Green | InGaN | 525 | 3.80 | 4.50 | 400 |
|
BL-M19A881B-XX | BL-M19B881B-XX | Ultra Blue | InGaN | 470 | 2.70 | 4.20 | 270 |
|
BL-M19A881W-XX | BL-M19B881W-XX | Ultra White | InGaN | / | 2.70 | 4.20 | 350 |
|
- 所属城市：浙江 宁波
- [联系时请说明来自维库仪器仪表网]
- 联系人： 唐先生
- 电话：574-88087719
- 传真：574-88087729
- 手机：
- QQ ：
供应 1.5英寸 8*8点阵 双色数码管
信息内容：特点: 38.00mm(1.5)Φ3.7LED点阵 低电流操作 优良的品质外观 容易安装在PC板和PC槽上 智能卡兼容 符合ROHS Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Part NoChipVFUnit:VIv TYP.(mcd) Row Cathode Column AnodeRow AnodeColumn CathodeEmitted ColorMateriallP(nm) TypMax BL-M15A881SG-XXBL-M15B881SG-XXSuper RedAlGaInP6602.102.50250 GreenGaP/GaP5702.202.50195 BL-M15A881EG-XXBL-M15B881EG-XXOrangeGaAsP/GaP6352.102.50190 GreenGaP/GaP5702.202.50195 BL-M15A881DUG-XXBL-M15B881DUG-XXUltra RedAlGaInP6602.102.50320 Ultra GreenAlGaInP5742.202.50250 BL-M15A881UEUG-XXBL-M15B881UEUG-XXUltra OrangeAlGaInP6302.102.50235 Ultra GreenAlGaInP5742.202.50250 n -XX: Surface / Lens color：Number012345Ref Surface ColorWhiteBlackGrayRedGreen Epoxy ColorWater clearWhite diffusedRedDiffusedGreenDiffusedYellowDiffused

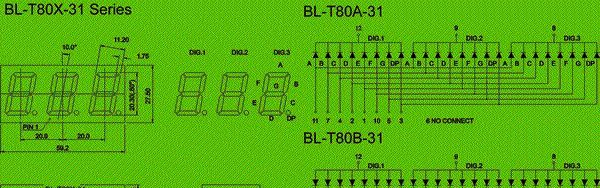

供应 0.80英寸三位 数码管
信息内容：特点: 0.80英寸三位数LED数码管 0.80英寸的数字高(20.30mm) 宽度*高度:59.20*27.50mm 低电流操作 共阴共阳可选 优良的品质外观 输出亮度高 易于安装在PC板和PC槽上 IC兼容 多种颜色可选 标准:灰面白字 符合RoHs Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)Part No Common CathodePart No Common AnodeColorWave length(V) typ(V) MaxBright (mcd)BL-T80A-31HBL-T80B-31HRed7002.252.612BL-T80A-31DBL-T80B-31DSuper Red6601.852.2130BL-T80A-31SBL-T80B-31SHi Red6601.852.2120BL-T80A-31URBL-T80B-31URUltra Red6601.852.2140BL-T80A-31EBL-T80B-31EOrange6352.12.575BL-T80A-31UEBL-T80B-31UEUltra Orange6302.12.5120BL-T80A-31UYBL-T80B-31UYUltra Yellow5902.12.5125BL-T80A-31YBL-T80B-31YYellow5852.12.570BL-T80A-31UGBL-T80B-31UGUltra Green5742.22.5145BL-T80A-31GBL-T80B-31GGreen5702.22.575BL-T80A-31PGBL-T80B-31PGUltra Pure Green5253.04.2210BL-T80A-31UBBL-T80B-31UBultra Blue4703.04...
