可比IRF460的优质台产大功率MOS管
| 价 格： | 4.88 | |
| 品牌/商标： | UTC（台湾友顺） | |
| 型号/规格： | UF460 | |
| 种类： | 绝缘栅(MOSFET) | |
| 沟道类型： | N沟道 | |
| 导电方式： | 增强型 | |
| 用途： | SW-REG/开关电源 | |
| 材料： | N-FET硅N沟道 |
1、高品质大功率台产UTC品牌MOS管。
2、该物料价格为虚拟价格，详情请垂询我们的业务人员。
21 Amps, 500 Volts N-CHANNEL POWER MOSFET
DESCRIPTION
The UF460 uses advanced UTC technology to provide
excellent RDS(ON), low gate charge and operation with low gate
voltages. This device is suitable for use as a load switch, in PWM
applications, motor controls, inverters, choppers, audio amplifiers
and high energy pulse circuits.
FEATURES
* RDS(ON) =310mΩ@VGS= 10V, ID =21A
* Ultra low gate charge (max. 190nC )
* Low reverse transfer capacitance ( CRSS = typical 250pF )
* Fast switching capability
* Avalanche energy specified
* Improved dv/dt capability
SYMBOL
1.Gate
3.Source
2.Drain
Lead-free: UF460L
Halogen-free: UF460G
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 宋哲
- 电话：755-29743120
- 传真：755-29743120
- 手机：
- QQ ：
热销厂家新品推荐NCE20N60T (600V20A， TO-247封装)
信息内容：General Description The series of devices use advanced super junction technology and design to provide excellent RDS(ON) with low gate charge. This super junction MOSFET fits the industry’s AC-DC SMPS requirements for PFC, AC/DC powerconversion, and industrial power applications.Features●New technology for high voltage device●Low on-resistance and low conduction losses●Ultra Low Gate Charge cause lower driving requirements●100% Avalanche Tested●ROHS compliantApplication● Power factor correction （PFC）● Switched mode power supplies(SMPS) ● Uninterruptible Power Supply （UPS）"

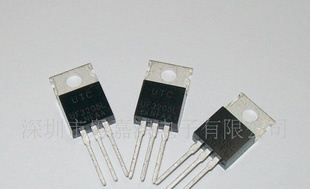

现货供8mΩ之MOS管UF3205 IRF3205
