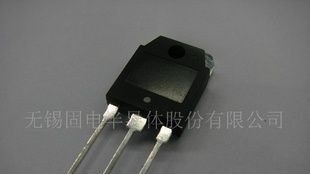

2SC3850 无锡固电ISC供应三极管
| 价 格： | 10.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SC3850 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·High Collector-Emitter Sustaining Voltage-
: VCEO(SUS)= 400V(Min)
·Good Linearity of hFE
·High Collector Current
APPLICATIONS
·Designed for power switching and general purpose
applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 500 | V |
VCES | Collector-Emitter Voltage | 500 | V |
VCEO | Collector-Emitter Voltage | 400 | V |
VEBO | Emitter-Base voltage | 7 | V |
IC | Collector Current-Continuous | 20 | A |
ICM | Collector Current-Peak | 30 | A |
IB | Base Current-Continuous | 6 | A |
PC | Collector Power Dissipation @ TC=25℃ | 125 | W |
Collector Power Dissipation @ Ta=25℃ | 2.5 | ||
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
VCEO(SUS) | Collector-Emitter Sustaining Voltage | IC= 0.5A; L= 25mH | 400 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 10A; IB= 2A |
|
| 1.0 | V |
VBE(sat) | Base-Emitter Saturation Voltage | IC= 10A; IB= 2A |
|
| 1.5 | V |
ICBO | Collector Cutoff Current | VCB= 500V ; IE= 0 |
|
| 100 | μA |
IEBO | Emitter Cutoff Current | VEB= 7V; IC= 0 |
|
| 100 | μA |
hFE-1 | DC Current Gain | IC= 2A ; VCE= 5V | 15 |
|
|
|
hFE-2 | DC Current Gain | IC= 10A ; VCE= 5V | 10 |
|
|
|
fT | Current-Gain—Bandwidth Product | IC= 1A ; VCE= 10V; f= 1MHz |
| 15 |
| MHz |
Switching Times | ||||||
ton | Turn-on Time | IC= 10A, IB1= -IB2= 2A; VCC= 125V |
|
| 1.0 | μs |
tstg | Storage Time |
|
| 2.5 | μs | |
tf | Fall Time |
|
| 1.0 | μs | |
