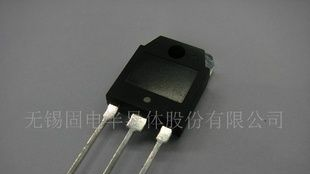

无锡固电ISC 供应BU931三极管
| 价 格： | 10.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | BU931 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 金属封装 |
DESCRIPTION
·High Voltage
·DARLINGTON
APPLICATIONS
·High ruggedness electronic ignitions
·High voltage ignition coil driver
Absolute maximum ratings (Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 500 | V |
VCEO | Collector-Emitter Voltage | 400 | V |
VEBO | Emitter-Base Voltage | 5 | V |
IC | Collector Current | 15 | A |
ICM | Collector Current-peak | 30 | A |
IB | Base Current | 1 | A |
IBM | Base Current-peak | 5 | A |
PC | Collector Power Dissipation @TC=25℃ | 175 | W |
Tj | Junction Temperature | 200 | ℃ |
Tstg | StorageTemperature Range | -65~200 | ℃ |
THERMAL CHARACTERISTICS
SYMBOL | PARAMETER | MAX | UNIT |
Rth j-c | Thermal Resistance, Junction to Case | 1.0 | ℃/W |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
VCEO(SUS) | Collector-Emitter Sustaining Voltage | IC= 0.1A; IB= 0;L= 10mH | 400 |
| V | |
VCE(sat)-1 | Collector-Emitter Saturation Voltage | IC= 7A; IB= 70mA |
|
| 1.6 | V |
VCE(sat)-2 | Collector-Emitter Saturation Voltage | IC= 8 A; IB= 100mA |
|
| 1.8 | V |
VCE(sat)-3 | Collector-Emitter Saturation Voltage | IC= 10 A; IB= 250mA |
|
| 1.8 | V |
VBE(sat)-1 | Base-Emitter Saturation Voltage | IC= 7A; IB= 70mA |
|
| 2.2 | V |
VBE(sat)-2 | Base-Emitter Saturation Voltage | IC= 8 A; IB= 100mA |
|
| 2.4 | V |
VBE(sat)-3 | Base-Emitter Saturation Voltage | IC= 10A; IB= 250mA |
|
| 2.5 | V |
ICES | Collector Cutoff Current | VCE= 500V;VBE= 0 VCE= 500V;VBE= 0;Tj= 125℃ |
|
| 0.1 0.5 | mA |
ICEO | Collector Cutoff Current | VCE= 450V;IB= 0 VCE= 450V;IB= 0;Tj= 125℃ |
|
| 0.1 0.5 | mA |
IEBO | Emitter Cutoff Current | VEB= 5V; IC= 0 |
|
| 20 | mA |
hFE | DC Current Gain | IC= 5A ; VCE= 10V | 300 |
|
|
|
VECF | C-E Diode Forward Voltage | IF= 10A |
|
| 2.5 | V |
"
