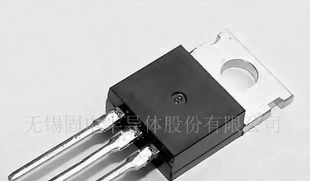

无锡固电ISC供应2SD5072三极管
| 价 格： | 4.50 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SD5072 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·High Breakdown Voltage-
: VCBO= 1500V (Min)
·High Switching Speed
·High Reliability
·Built-in Damper Diode
APPLICATIONS
·Designed for color TV horizontal output applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 1500 | V |
VCEO | Collector-Emitter Voltage | 800 | V |
VEBO | Emitter-Base Voltage | 6 | V |
IC | Collector Current- Continuous | 5 | A |
ICM | Collector Current-Peak | 16 | A |
PC | Collector Power Dissipation @ TC=25℃ | 60 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 4A; IB= 0.8A |
|
| 5.0 | V |
VBE(sat) | Base-Emitter Saturation Voltage | IC= 4A; IB= 0.8A |
|
| 1.5 | V |
ICBO | Collector Cutoff Current | VCB= 800V ; IE= 0 |
|
| 10 | μA |
IEBO | Emitter Cutoff Current | VEB= 4V ; IC= 0 | 40 |
| 200 | mA |
hFE | DC Current Gain | IC= 1A ; VCE= 5V | 8 |
|
|
|
VECF | C-E Diode Forward Voltage | IF= 5A |
|
| 2.0 | V |
fT | Current-Gain—Bandwidth Product | IC= 1A ; VCE= 10V |
| 3 |
| MHz |
tf | Fall Time | IC= 4A , IB1= 0.8A ; IB2= -1.6A RL= 50Ω;VCC= 200V |
|
| 0.4 | μs |
