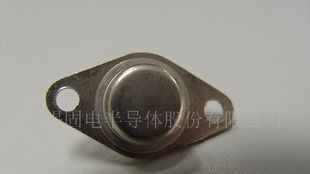

无锡固电ISC 供应BU608三极管
| 价 格： | 9.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | BU608 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·High Voltage: VCEV= 400V(Min)
·Fast Switching Speed-
: tf= 0.5μs(Max)
·Low Saturation Voltage-
: VCE(sat)= 1.0V(Max)@ IC= 6A
APPLICATIONS
·Designed for use in horizontal deflection output stages
of TV’s and CRT’s
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 400 | V |
VCEV | Collector-Emitter Voltage | 400 | V |
VCEO | Collector-Emitter Voltage | 200 | V |
VEBO | Emitter-Base Voltage | 6 | V |
IC | Collector Current-Continuous | 7 | A |
ICM | Collector Current-Peak | 10 | A |
IB | Base Current | 4 | A |
PC | Collector Power Dissipation @ TC=25℃ | 60 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -65~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
VCEO(SUS) | Collector-Emitter Sustaining Voltage | IC= 100mA ;IB= 0 | 200 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 6A; IB= 1.2A |
|
| 1.0 | V |
VBE(sat) | Base-Emitter Saturation Voltage | IC= 6A; IB= 1.2A |
|
| 1.5 | V |
hFE | DC Current Gain | IC= 2A; VCE= 5V; |
| 15 |
|
|
ICEV | Collector Cutoff Current | VCE= 400V; VBE= -1.5V |
|
| 15 | mA |
IEBO | Emitter Cutoff Current | VEB= 6V; IC= 0 |
|
| 400 | mA |
fT | Current-Gain—Bandwidth Product | IC= 0.5A ; VCE= 10V, ftest= 1MHz | 10 |
|
| MHz |
tf | Fall Time | IC= 6A; IB1= -IB2= 1.2A, VCC= 40V |
|
| 0.5 | μs |
