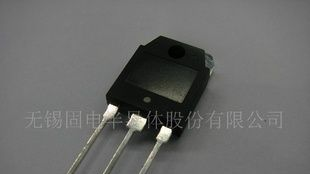

无锡固电ISC供应2SC3158三极管
| 价 格： | 3.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SC3158 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·Low Collector Saturation Voltage-
: VCE(sat)= 1.0V(Max.)@IC= 3A
·Fast Switching Speed
APPLICATIONS
·Designed for switching regulator, DC-DC converter and high
frequency power amplifier applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 500 | V |
VCEO | Collector-Emitter Voltage | 400 | V |
VEBO | Emitter-Base Voltage | 7 | V |
IC | Collector Current-Continuous | 7 | A |
ICM | Collector Current-Peak | 15 | A |
IB | Base Current-Continuous | 3.5 | A |
PC | Collector Power Dissipation @ TC=25℃ | 60 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
VCEO(SUS) | Collector-Emitter Sustaining Voltage | IC= 3A; IB= 0.6A; L= 1mH | 400 |
|
| V |
VCEX(SUS)-1 | Collector-Emitter Sustaining Voltage | IC= 3A; IB1= -IB2= 0.6A; L= 180μH; Clamped | 450 |
|
| V |
VCEX(SUS)-2 | Collector-Emitter Sustaining Voltage | IC= 6A; IB1= 2A; IB2= -0.6A; L= 180μH; Clamped | 400 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 3A; IB= 0.6A |
|
| 1.0 | V |
VBE(sat) | Base-Emitter Saturation Voltage | IC= 3A; IB= 0.6A |
|
| 1.2 | V |
ICBO | Collector Cutoff Current | VCB= 400V; IE= 0 |
|
| 10 | μA |
ICER | Collector Cutoff Current | VCE= 400V; RBE= 51Ω,Ta=125℃ |
|
| 1.0 | mA |
ICEX | Collector Cutoff Current | VCE= 400V;VBE(off)=-1.5V VCE= 400V;VBE(off)=-1.5V,Ta=125℃ |
|
| 10 1.0 | μA mA |
IEBO | Emitter Cutoff Current | VEB= 5V; IC= 0 |
|
| 10 | μA |
hFE-1 | DC Current Gain | IC= 0.1A; VCE= 5V | 20 |
| 80 |
|
hFE-2 | DC Current Gain | IC= 1A; VCE= 5V | 20 |
| 80 |
|
hFE-3 | DC Current Gain | IC= 3A; VCE= 5V | 10 |
|
|
|
Switching times | ||||||
ton | Turn-On Time | IC= 3A; IB1= -IB2= 0.6A; RL= 50Ω; VCC≈150V |
|
| 1.0 | μs |
tstg | Storage Time |
|
| 2.5 | μs | |
tf | Fall Time |
|
| 1.0 | μs | |
u hFE-2Classifications
M | L | K |
20-40 | 30-60 | 40-80 |
"
